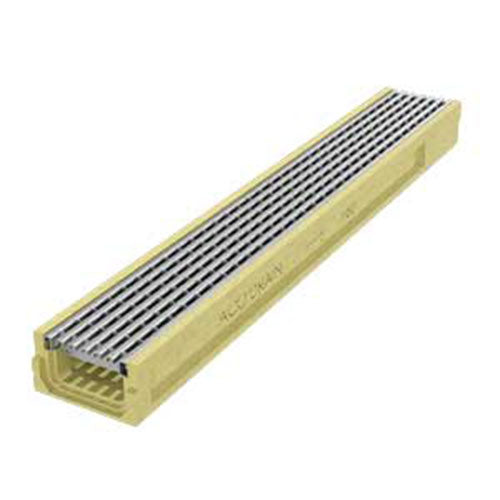

Shallow Channel Drain System - 39.37" - ACO H100-8

$155.00


FREE SHIPPING
SKU SLABDRAIN-H-HK

The Shallow Channel Drain System is engineered for applications where excavation depth is limited, such as parking decks, plazas, balconies, and retrofit installations. Each channel is constructed from polymer concrete with a compressive strength of 14,000 psi and very low water absorption, providing long-lasting durability and strong resistance to chemical exposure.

Key Features:

  • Edge Options – Available with polymer (H Series), galvanized or stainless steel (HK Series), or ductile iron (HSK Series) edges to meet load requirements up to Class F.

  • Widths – Offered in 4″, 8″, and 12″ internal widths with a neutral-depth (flat invert) design that simplifies layout and installation.

  • Grating & Locking Systems – Wide range of ADA-compliant, heel-resistant, and decorative grates secured with QuickLok®, DrainLok, or PowerLok, providing quick installation and easy maintenance access.


System Selection:

  • Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as drains and grates.

Note: ACO drainage products are subject to a $750 minimum order


Please Use the Order Form Below to Order ▼

Ordering Info:

Please scroll down for the complete SlabDrain H & HK Series product listing with pricing.

Looking for a Written Quote?
Submit an ACO quote request >

Spec Sheets

Expand the menu below to view product specification sheets.

View Spec Sheets
H-HK – Converted

Part Specification

3 Part Specification - SlabDrain (Non-Metallic Edge) - General Duty Shallow Depth Trench Drain

Trench Systems

SlabDrain - H100-8 channel system.pdf

SlabDrain - H100-10 channel system.pdf

QUICKLOK LOCKING

H-Series (Non-Metal Edge)

Type 492Q - black

Type 479Q - iron

Type 461Q - iron

Type 435Q - 436Q   galvanized

Type 490Q - 493Q   stainless

Type 478Q - iron



Part Specifications

SlabDrain - Iron Edge Heavy Duty Shallow Depth Trench Drain 3-Part Spec Sheet

Trench Systems

SlabDrain – H100K-6 Galvanized Steel Edge Rail Channel System Spec Sheet

SlabDrain – H100K-8 Galvanized Steel Edge Rail Channel System Spec Sheet

SlabDrain – H100KS-6 Stainless Steel Edge Rail Channel System Spec Sheet

SlabDrain – H100KS-8 Stainless Steel Edge Rail Channel System Spec Sheet



4" (100 mm) Grates

Type 410D - galvanized

Type 412D - galvanized

Type 451D - stainless

Type 453D - stainless

Type 420D - galvanized

Type 421D - galvanized

Type 450D - stainless

Type 452D - stainless

Type 494D-495-496D Longitudinal plastic grate

Type 447D - stainless

Type 448D – stainless

Type 438D - galvanized

Type 437D - galvanized

Type 492D - microgrip black

Type 425D - galvanized

Type 426D - galvanized

Type 455D - stainless

Type 457D - stainless

Type 411D - galvanized

Type 413D - galvanized

Type 465D - stainless

Type 466D - stainless

Type 405D - galvanized

Type 406D - galvanized

Type 430D - stainless

Type 431D - stainless

Type 460D - iron

Type 476D - iron

Type 480D - iron

Type 492Q - black

Type 479Q - iron

Type 461Q - iron

Type 435Q - galvanized

Type 436Q - galvanized

Type 490Q - stainless

Type 493Q - stainless

Type 478Q - iron



8" (200 mm) Grates

Type 647D - stainless 142219

Type 648D - stainless 1422200

Type 605Q - galvanized 10352

Type 606Q - galvanized 10353

Type 630Q - stainless 16032

Type 660D - iron

Type 676D - iron

Type 680D - iron

Type 678Q - iron

Type 661Q - iron



12" (300 mm) Grates

Type 847D - stainless

Type 848D – stainless

Type 805D - galvanized

Type 830D - stainless

Type 860D – iron

Type 876D - iron

Type 880D - iron

Type 811Q - galvanized

Type 813Q - galvanized

Type 865Q - stainless

Type 866Q - stainless

Type 878Q - iron

Type 861Q - iron





Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 583-4891 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
ACO-Transit-Map.gif__PID:5127836e-f287-4ab5-9821-e15938a6e154

Trench Drain System & Accessories (Free Shipping)

Please see the below product listing. Please note, accessories (grates, basins, caps, etc.) must be purchased with a trench drain system including channels and cannot ship alone.

Shallow Channel Drain System: Complete Guide for Limited-Depth Applications

The Shallow Channel Drain System is engineered for projects where installation depth is limited but efficient water management is critical. These systems are perfect for plazas, parking decks, balconies, and retrofit applications. By using polymer concrete channels with superior compressive strength (14,000 psi) and low water absorption, they provide long-lasting durability, chemical resistance, and structural integrity in even the most demanding environments.

Shallow channel drain system installed at large office park walkway
Shallow Channel Drain System integrated into an office park walkway

What Makes Shallow Channel Drains Different?

Unlike deeper trench systems, shallow drains allow installation where excavation depth is restricted. Their neutral-depth design (flat invert) makes layout simple and flexible, accommodating long runs without complex grading requirements.

Key Features:
  • Widths: Available in 4", 8", and 12" internal widths
  • Edges: Polymer (H Series), galvanized or stainless (HK Series), or ductile iron (HSK Series)
  • Load Capacity: Suitable up to Class F loads
  • Grates: ADA-compliant, heel-resistant, and decorative options
  • Locking Systems: QuickLok®, DrainLok, and PowerLok for secure, fast maintenance
Shallow channel drain system providing surface water management at commercial walkway
Commercial office park walkway using shallow drainage channels

Applications of Shallow Channel Drain Systems

  • Parking Decks: Manage runoff where excavation depth is limited by structural slabs.
  • Plazas & Courtyards: Discreet water management that maintains pedestrian safety.
  • Balconies & Rooftops: Lightweight, durable solutions compatible with limited build-up depths.
  • Retrofits: Ideal for existing developments where deeper excavation isn’t possible.

Because of their modular design, shallow channels can be customized with various grate options to meet ADA requirements, architectural aesthetics, and pedestrian safety standards. Their adaptability ensures that both function and design are maintained without compromise.

Shallow channel drain system installed in landscaped office park area
Shallow Channel Drain integrated seamlessly into a landscaped office park

Installation & Maintenance Advantages

  1. Easy Layout: Neutral-depth channels simplify installation without complex slope adjustments.
  2. Durability: Polymer concrete resists chemical damage, freeze-thaw cycles, and wear.
  3. Quick Access: Boltless locking systems (QuickLok®, DrainLok, PowerLok) speed up grate removal and reduce downtime.
  4. Safety: ADA-compliant, heel-proof grates ensure safe pedestrian traffic flow.

Routine maintenance is streamlined with secure, tool-free locking mechanisms, making inspections, cleaning, and replacements faster and less labor-intensive.

Case Study: Office Park Walkway Retrofit

Challenge: A large office park faced frequent pooling along its main pedestrian walkways after rainfall. Excavation depth was limited due to existing concrete slabs, making traditional trench drains impractical.

Solution: A 200-foot run of Shallow Channel Drain System was installed along landscaped areas and pedestrian corridors. Using 8" wide polymer concrete channels with stainless steel edge rails and ADA-compliant decorative grates, the system provided both durability and architectural appeal. QuickLok® locking was chosen to simplify future maintenance.

Results: The new drainage system eliminated standing water, improved pedestrian safety, and enhanced the overall appearance of the office park. Facility managers noted faster cleanup times after storms and reduced slip hazards for employees and visitors.

Frequently Asked Questions

Why choose a shallow channel drain over a standard trench system?

Shallow drains are specifically designed for spaces where digging deep trenches is not possible—such as rooftops, balconies, and decks. They maintain performance while minimizing excavation depth.

Can shallow channels handle vehicle traffic?

Yes, with proper edge selection (galvanized, stainless steel, or ductile iron), shallow channel drains can be rated up to Class F, making them suitable for light to heavy-duty vehicular traffic.

Are decorative grates available?

Yes. Options include ADA-compliant and heel-resistant grates in decorative styles, allowing systems to blend seamlessly with architectural environments while meeting safety standards.

Plan Your Drainage Project

If your project involves limited installation depth but demands reliable water management, a Shallow Channel Drain System is the ideal solution. From plazas to rooftops, these systems provide strength, safety, and design flexibility.
