How to Size a Backflow Enclosure
Start by measuring the full installed assembly — including the backflow preventer, shutoff valves, test cocks, strainers, and any unions. That total measurement is your minimum inside clearance need. Then add at least 6 inches on each dimension so technicians can reach test cocks and perform annual testing without having to remove the enclosure.
All enclosures ship free.
Buyer's Guide · Backflow Enclosures
How to Choose and Size a Backflow Preventer Enclosure
An unprotected backflow preventer sitting outdoors is exposed to freezing, theft, and flooding — and may not meet local code. The right enclosure solves all of that at once.
Here's what a backflow enclosure does, what the ASSE 1060 standard requires, how to pick the right class, and how to size one correctly. Every enclosure we carry ships free.
What a Backflow Enclosure Actually Does
An above-ground enclosure shields the assembly from weather, freezing, and tampering.
A backflow preventer exists to stop contaminated water from flowing back into the clean, potable supply. When that assembly freezes, floods, or is tampered with, the protection it provides is compromised — and the property owner is exposed to liability. A purpose-built enclosure does four jobs at once: it provides freeze protection, security against theft and vandalism (the brass and copper in an assembly are valuable targets), shelter from weather, and ready access for the annual testing these devices require.
Industry best practice is to install the assembly outdoors, above ground, inside a certified aluminum enclosure — rather than in a below-grade vault, which is a confined-space and flooding hazard, or indoors, where an RPZ's relief valve can discharge hundreds of gallons and flood the building.
ASSE 1060: The Standard to Look For
ASSE 1060 is the national performance standard for outdoor enclosures that protect backflow assemblies and other fluid-conveying components. It was introduced by the American Society of Sanitary Engineering in 1996 and has been updated since. To earn certification, a manufacturer's enclosure is lab-tested for freeze protection, security (the locking system must resist a pull test), structural strength (supporting roughly 100 lbs per square foot), and drainage that routes relief-valve discharge safely away from the equipment. Many municipalities now require an ASSE 1060 enclosure outright, so specifying anything less can mean a failed inspection.
Class 1 vs. Class 2 vs. Class 3
Most Common
Class 1 — Heated
Maintains at least 40°F inside even when it's -30°F outside. Insulated to R-8 or higher and paired with a heater. The right choice anywhere a freeze is possible.
Class 2 — Freeze-Retardant
Insulated for frost protection in mild climates that rarely stay below about 33°F. No heater, so it won't hold temperature through a hard freeze.
Class 3 — Security Only
No thermal rating. Guards against theft, vandalism, and accidental damage, but offers no freeze protection at all.
Rule of thumb: if a freeze is even possible in your area, choose Class 1 with a heater. Unexpected cold snaps now reach the Sun Belt regularly, so most buyers specify Class 1 regardless of their typical winter.
Why Aluminum — and What's Inside

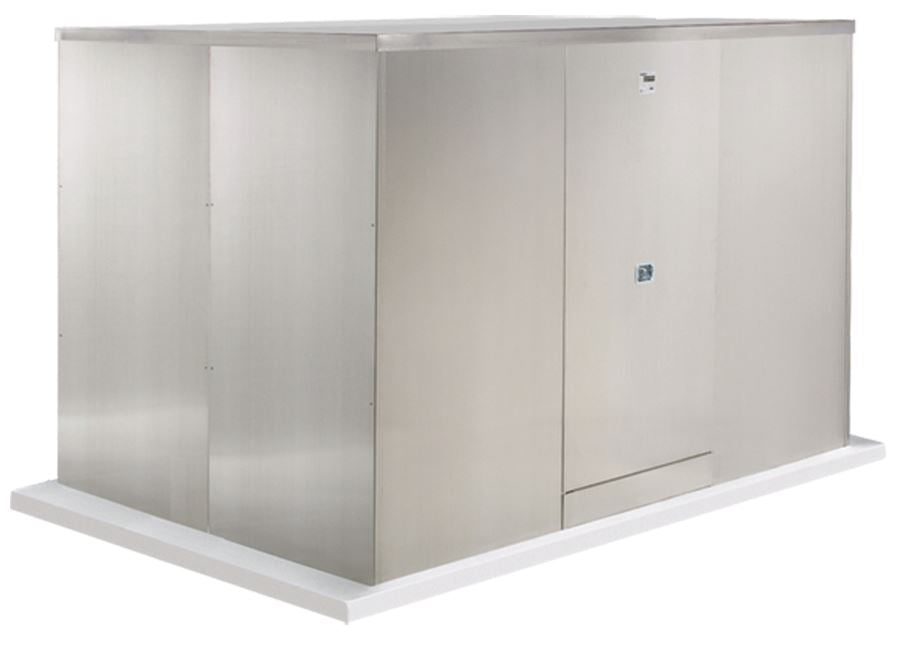

Marine-grade aluminum enclosures are lockable and built to last decades.
Marine-grade aluminum is the preferred material for a reason: it won't rot or rust, and it resists the UV degradation that cracks fiberglass over time. A quality aluminum enclosure can last 30 years or more. Inside, the panels are typically lined with rigid polyisocyanurate insulation — one of the highest R-values per inch of any rigid board, around R-6.5 — and good enclosures exceed the R-8 minimum, with extra insulation in the roof since heat rises.
For Class 1 freeze protection, the most effective setup is a slab-mounted heater bolted low to the concrete. It warms both the air and the slab and drives heat down into the vertical riser pipes. By contrast, cages, insulated bags, and decorative fake rocks provide little real freeze protection and weak security — which is why jurisdictions increasingly move away from them.
How to Size Your Enclosure
Size for access: testers need room to reach every test cock.
Start by measuring the full installed assembly end to end — the backflow preventer body, shutoff valves, test cocks, strainers, and any unions. That total is your minimum interior clearance. Then add at least 6 inches on every dimension so a technician can reach the test cocks and service the unit without removing the cover.
For RPZ assemblies, allow extra room below the relief valve — roughly 12 inches — so discharge drains freely instead of pooling or freezing at the base. Once you have your interior length, width, and height, enter them in the Backflow Enclosure Size Finder above to see every matching model.
Quick Sizing Checklist
1. Measure the assembly: preventer, shutoffs, test cocks, strainers, unions
2. Add 6" or more to length, width, and height for test access
3. For RPZs, allow ~12" of clearance below the relief valve for drainage
4. Pick your class: Class 1 (heated) anywhere a freeze is possible
5. Enter the interior dimensions in the Size Finder above
Brands We Carry
We stock ASSE 1060 aluminum enclosures from Safe-T-Cover and AquaShield, plus Hubbell Hot Box heaters to complete a Class 1 setup. Standard sizes cover the most common backflow assemblies, and custom sizes are available for large or unusual configurations. Whatever you choose, the goal is the same: a heated, insulated, lockable enclosure that keeps the assembly compliant and operational for decades.
Ready to size yours? Enter your interior length, width, and height in the Backflow Enclosure Size Finder above to see every matching model — and remember, all enclosures ship free.
