Ground Protection Mats Compared: DuraDeck vs. SignaRoad vs. MegaDeck
Protecting turf, soft ground, and finished surfaces from heavy equipment comes down to one thing: matching the mat to the load. Too light and it flexes or fails; heavier than you need and you're paying for weight you'll never use.
Three composite systems cover the range — light-duty DuraDeck, medium-duty SignaRoad, and heavy-duty MegaDeck HD+.
All three are reusable HDPE composite mats from Signature Systems. They install with little or no ground prep over grass, gravel, soil, mud, concrete, or asphalt; they won't rot, warp, crack, or absorb contaminants like plywood; and they last 10+ years. What changes from one to the next is thickness, weight, and how much load each can carry.
7.5' × 14' × 4" · 105 ft² ~1,025 lb — equipment to place Up to 600 psi (86,400 lb/ft²) Cranes, rigs, heaviest equipment
Match the Mat to the Load
The heavier the load and the softer the ground, the thicker the mat.
Two questions decide the tier: how heavy is the load, and how soft or sensitive is the ground beneath it? The working capacities climb in clear steps — DuraDeck handles foot traffic and lighter vehicles and supports point loads up to 80 tons over solid ground, SignaRoad steps up to 400 psi for trucks, forklifts, and backhoes on temporary roads, and MegaDeck HD+ tops out at 600 psi for cranes, rigs, and the heaviest equipment on the worst ground.
When you're between tiers — or working over consistently soft, muddy ground — size up. A heavier mat spreads load over a larger footprint and holds its shape under sustained traffic.
DuraDeck: Light, Portable Ground Protection
A 4' × 8' mat one or two people can carry — no tools, no machinery.
At 32 ft² and just 86 lb, DuraDeck is the grab-and-go mat — one or two people can place it without tools, and it fits in most pickup beds. The HDPE construction carries point loads up to 80 tons over solid ground, with a rugged equipment tread on one side and a pedestrian-friendly tread on the other. Optional 2-way or 4-way DuraLink connectors lock corners so mats don't skip or hop under traffic. It's the right call for landscaping, excavation access, utility work, residential machinery moves, and pedestrian paths.

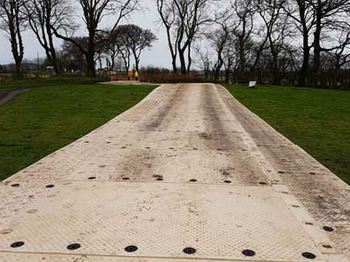

SignaRoad: Medium-Duty Roadways & Platforms
Overlapping flanges and cam locks build a continuous, non-shifting surface.
SignaRoad is the middle of the range: a 68 ft², 2.5"-thick mat rated to 400 psi for trucks, forklifts, and backhoes. Overlapping and underlapping flanges with molded cam locks and composite pins (set with a hex key) self-align the mats into a continuous surface that won't shift, separate, or let mud seep up under heavy rolling loads. Like DuraDeck, it carries a dual tread — roadway on one side, pedestrian on the other — so a single order covers both equipment lanes and walkways. At 496 lb it's placed with a forklift, and it's built for temporary roadways, work platforms, and laydown yards in construction, utility, oil and gas, and event work.
MegaDeck HD+: Heavy-Duty for the Toughest Ground
105 ft² per mat, rated to 600 psi for cranes and rigs.
When the load is extreme — cranes, drilling rigs, the heaviest tracked equipment — MegaDeck HD+ is the answer. Each 7.5' × 14' mat covers 105 ft² (84.5 ft² usable after flange overlap), weighs about 1,025 lb, and carries up to 600 psi (86,400 lb/ft²). A cross-ribbed interior distributes weight evenly across the panel, and the composite is non-conductive, chemically inert, and flame-rated (UL-94 HB) — a real advantage on power-transmission and oil-and-gas sites. Mats lock together with MDX pins or S2 Lock technology (8 pins per mat), carry a 5-mat minimum, and ship 40 to a container. Reach for MegaDeck on soft, swampy, or muddy ground where stability is non-negotiable.
One Rule for All Three: Not for Bridging
These mats distribute load across the ground beneath them — they don't span gaps. Always lay them over continuous supporting subgrade, never across open trenches, voids, or unsupported spans. Solid contact is what lets them carry their rated loads safely.
Connecting & Installing
Connectors keep mats from skipping or hopping under traffic.
Installation is similar across the line: no ground prep needed, lay from the most stable ground outward, and stagger connections for extra strength on slopes or uneven terrain. The connection hardware differs by system — DuraLink connectors on DuraDeck, cam locks with composite pins on SignaRoad, and MDX pins or S2 Lock on MegaDeck — but all of it does the same job: keep the mats from shifting, separating, or hopping under rolling loads. When the project wraps, pressure-wash and redeploy; the mats won't transfer contaminants between jobsites.
2. How soft is the ground? Softer or muddier sites favor a thicker, higher-psi mat
3. How will you place them? DuraDeck by hand; SignaRoad and MegaDeck need a forklift or equipment
4. Coverage area ÷ mat size (32 / 68 / 105 ft²), then add connector hardware
5. Lay over continuous ground — never bridge gaps or trenches
We carry all three Signature Systems composite mats — DuraDeck for light-duty ground protection, SignaRoad for medium-duty roadways, and MegaDeck HD+ for heavy-duty work platforms — all with free shipping.
Not sure which tier fits? Use the Ground Protection Mat Finder above — answer a few questions about your load and site and it points you to the right mat and count.
