Stadium Turf Protection & Event Flooring
Matrax Portable Event Flooring
Heavy-duty (HD) and light-duty (LD) interlocking 4' × 4' flooring panels for stadium turf protection, tent flooring, staging areas, and walkways. Cam-lock connections and overlapping flanges create a smooth, trip-resistant surface that installs and removes fast. Free shipping on every order.
Free shipping, all orders
4' × 4' interlocking panels
Cam-lock & overlapping-flange system
Practical Guide
Matrax HD: heavy-duty portable event flooring
Matrax HD is a rugged, interlocking 4' × 4' panel system for stadium turf protection, drivable access, and high-traffic event flooring. Here's how to choose, plan, and install it.
4' × 4' × 1.5" per panel
≈ 50 lb each
Cam-lock connections
4" overlapping flanges
16 ft² coverage / panel
Features
What sets Matrax HD apart
Heavy-duty construction

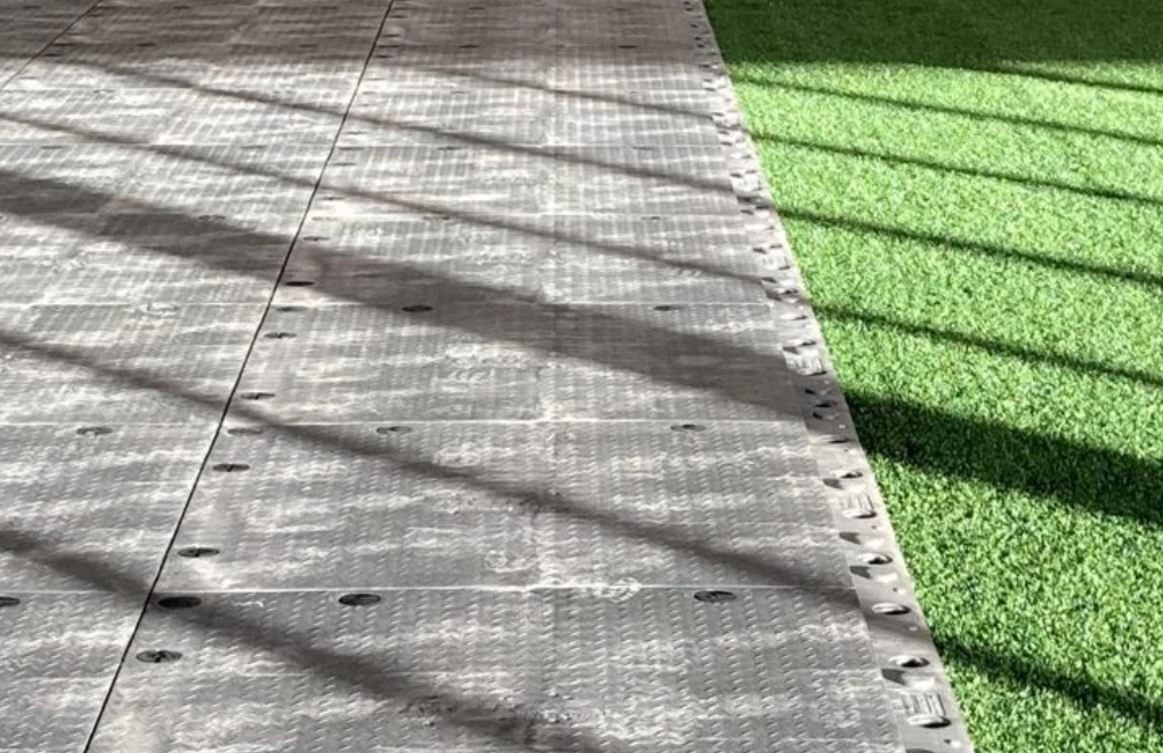

HD panels distribute vehicle and equipment loads while protecting natural, synthetic, or hybrid turf beneath.
Interlocking safety

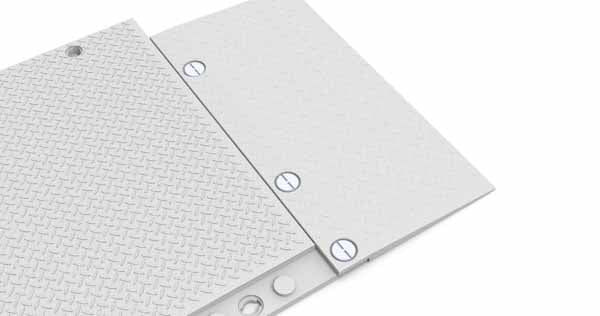

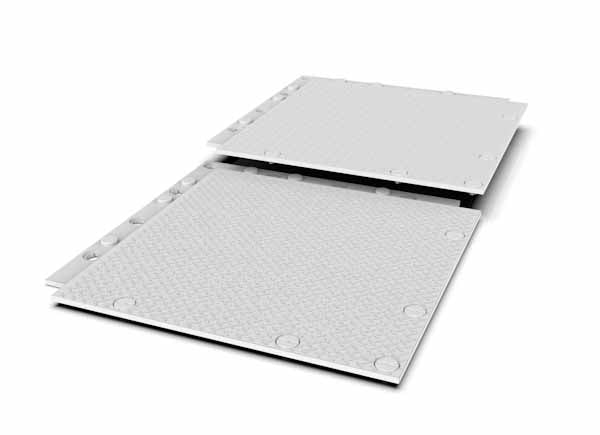

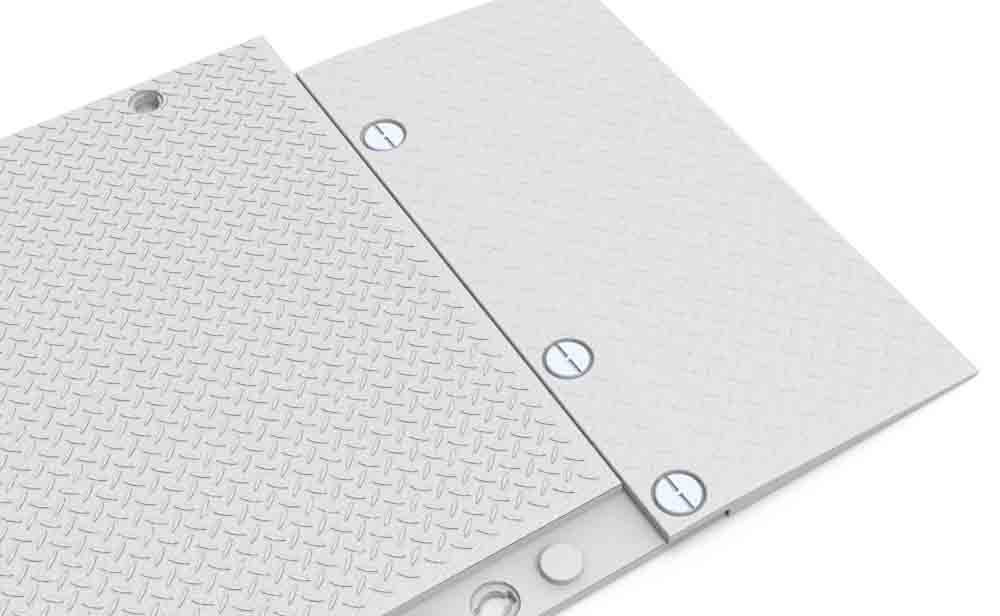

Vertical cam-locks and 4" overlapping flanges create a smooth, stable surface and limit debris and liquid ingress.
Efficient logistics

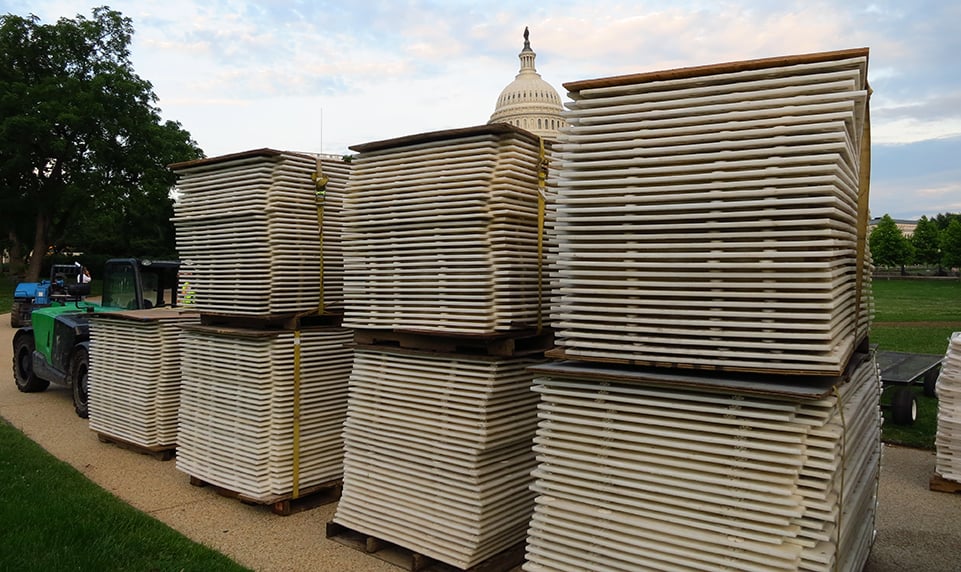

Palletized for fast deployment, with corrosion-resistant components engineered for repeated reuse.
Planning & Coverage
Plan the layout before you deploy
Coverage: each panel covers 16 ft² — allow a small reduction for flange overlap when estimating quantities.
Crew productivity: simple, repeatable cam-locks let crews install large areas quickly.
Surface prep: aim for a level, compacted subgrade and sweep away debris before installing. The smoother and firmer the base, the better the finished surface performs under load.
Installation
Step by step
1

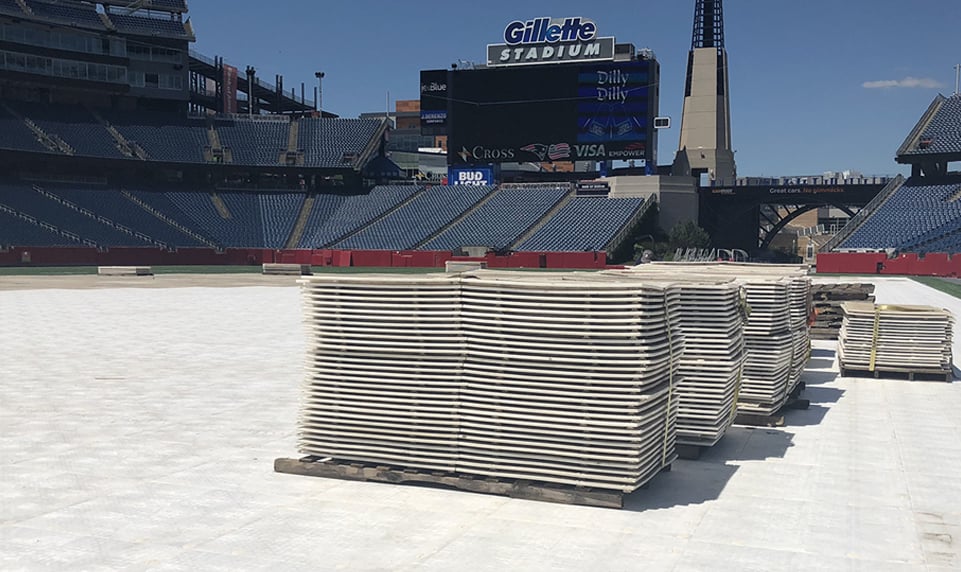

Stage pallets at access points to minimize carry distance.
2
Start along a straight reference line for a clean first course.
3
Seat overlaps fully and engage cam-locks; verify seams sit flush.
4

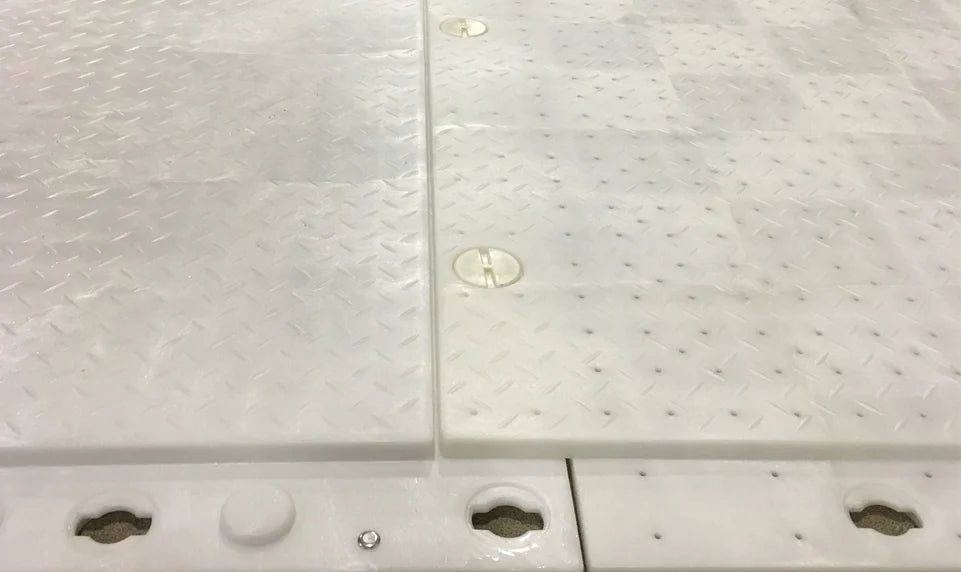

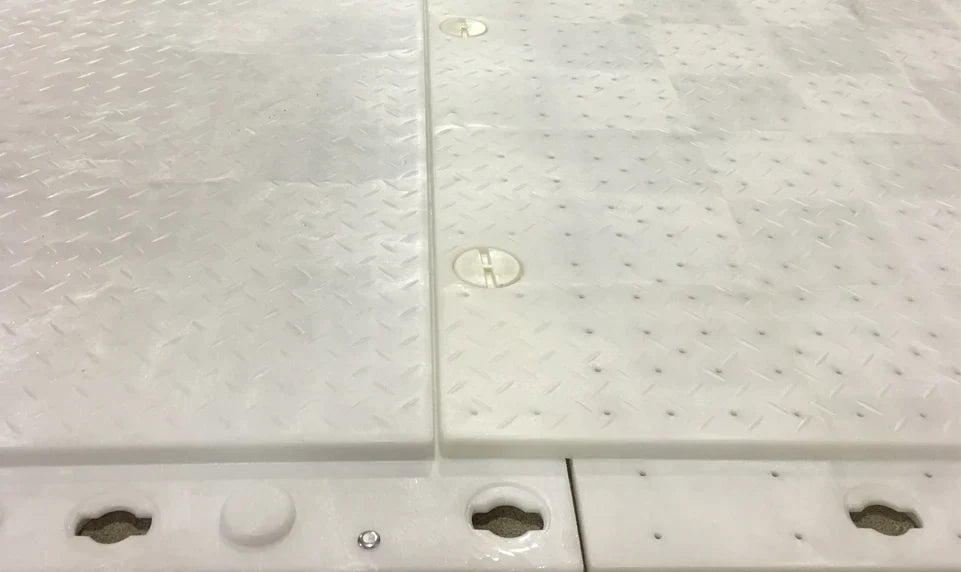

Mix HD and LD as needed — HD for lanes and platforms, LD for walkways.
5
Add ramps and edges where required for ADA access and a clean perimeter.
Applications
Where Matrax HD excels

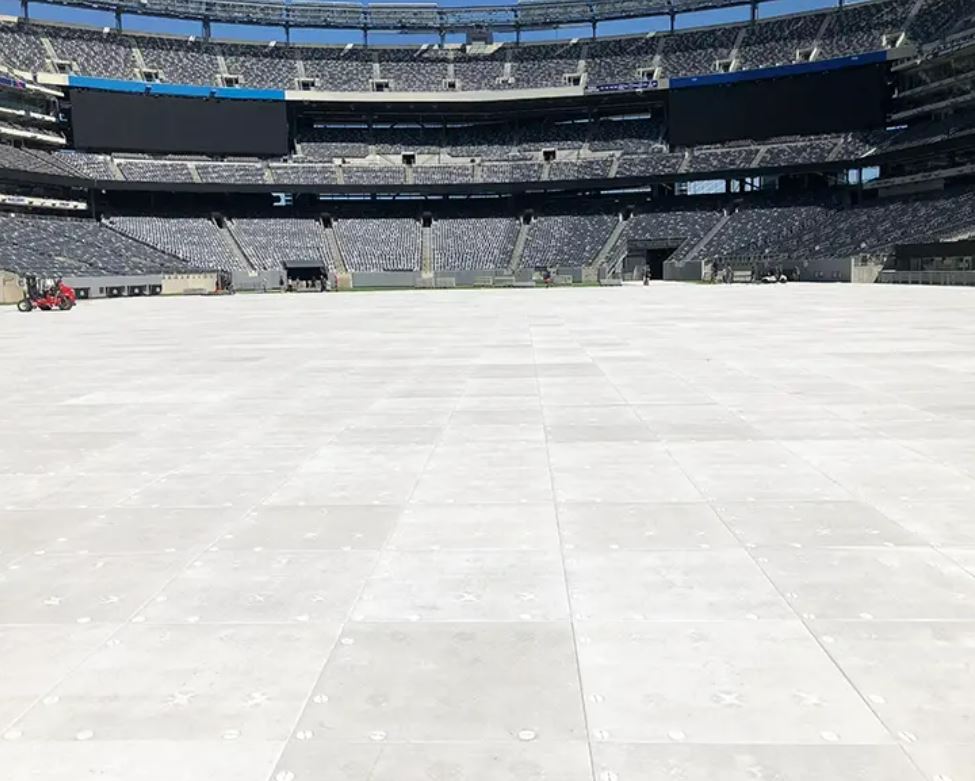

Stadium & arena conversions

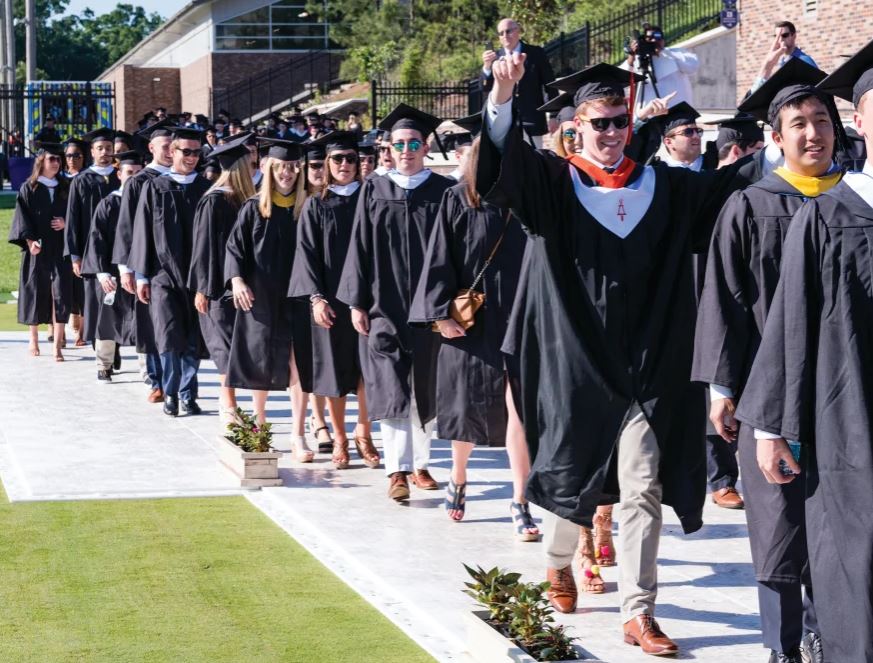

Protect fields during concerts and ceremonies while supporting staging and crowd loads.

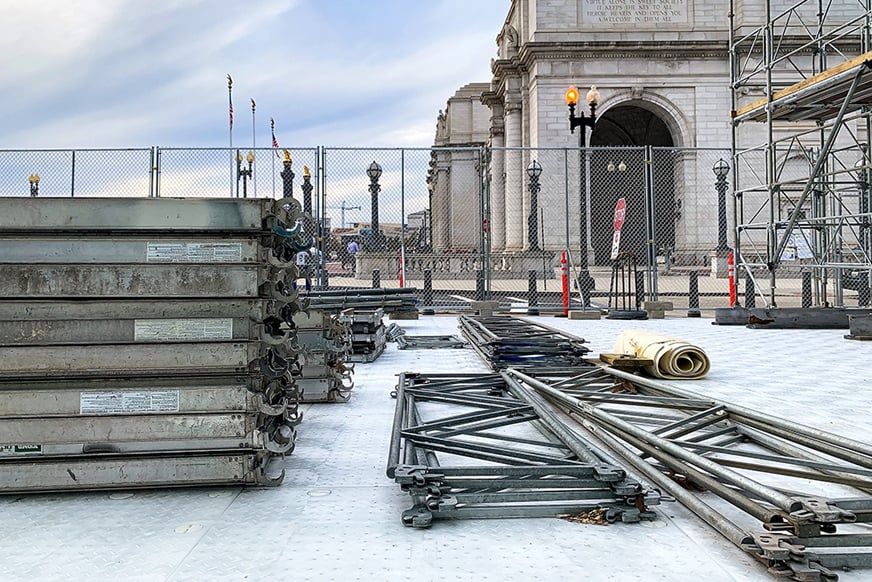

Construction & hardscape protection
Create stable platforms over pavers, concrete, or stone to minimize surface damage.

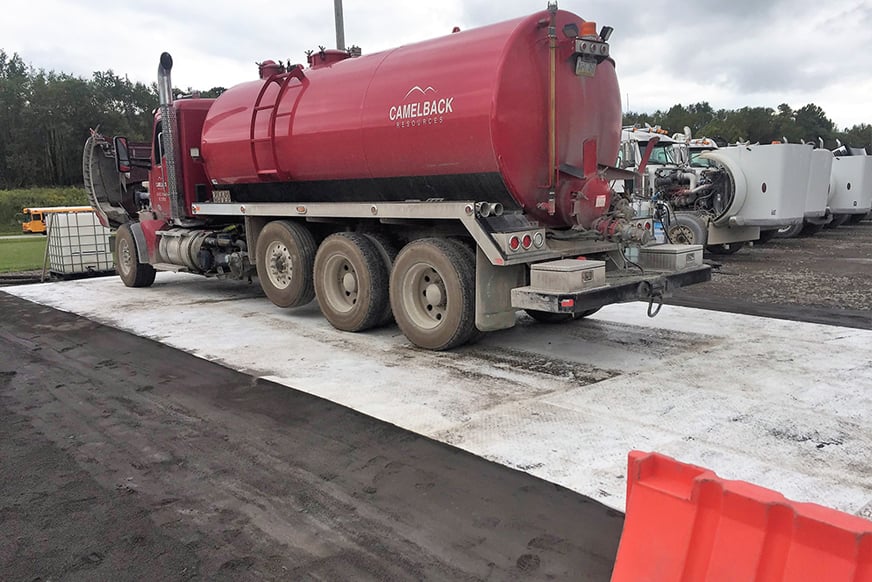

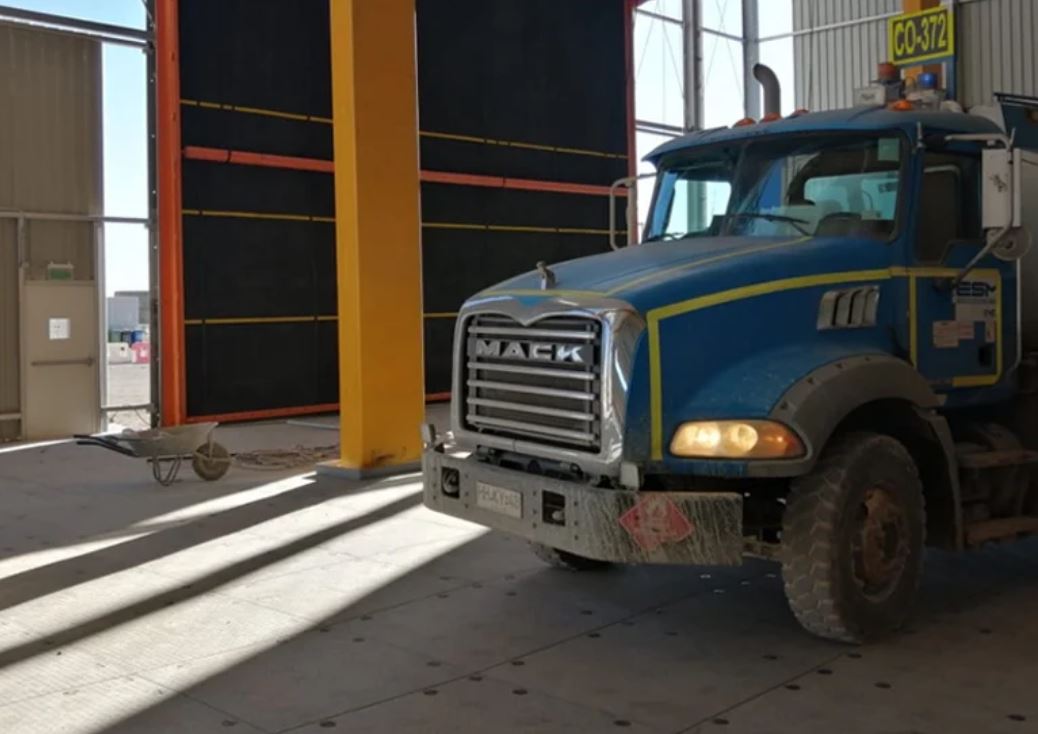

Remote & industrial sites
Build temporary access lanes and work pads where permanent slabs aren't practical.

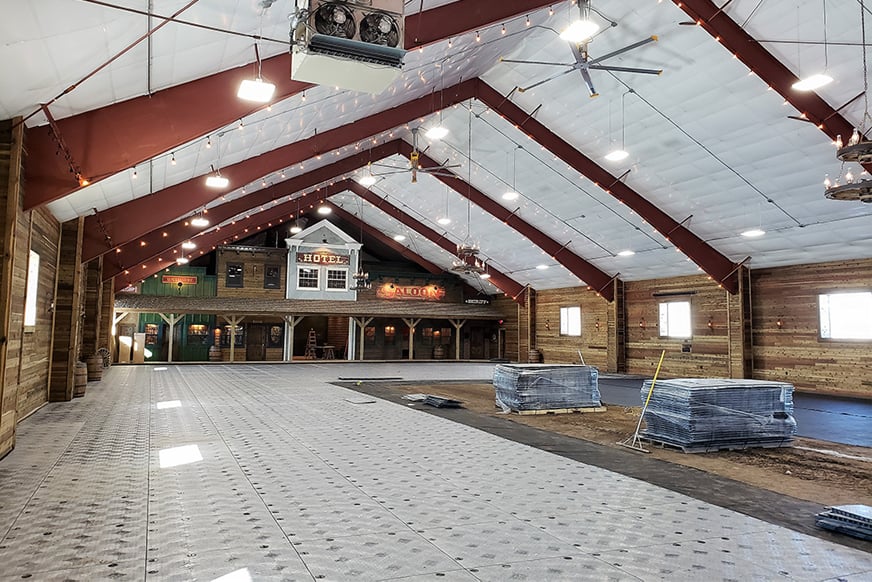

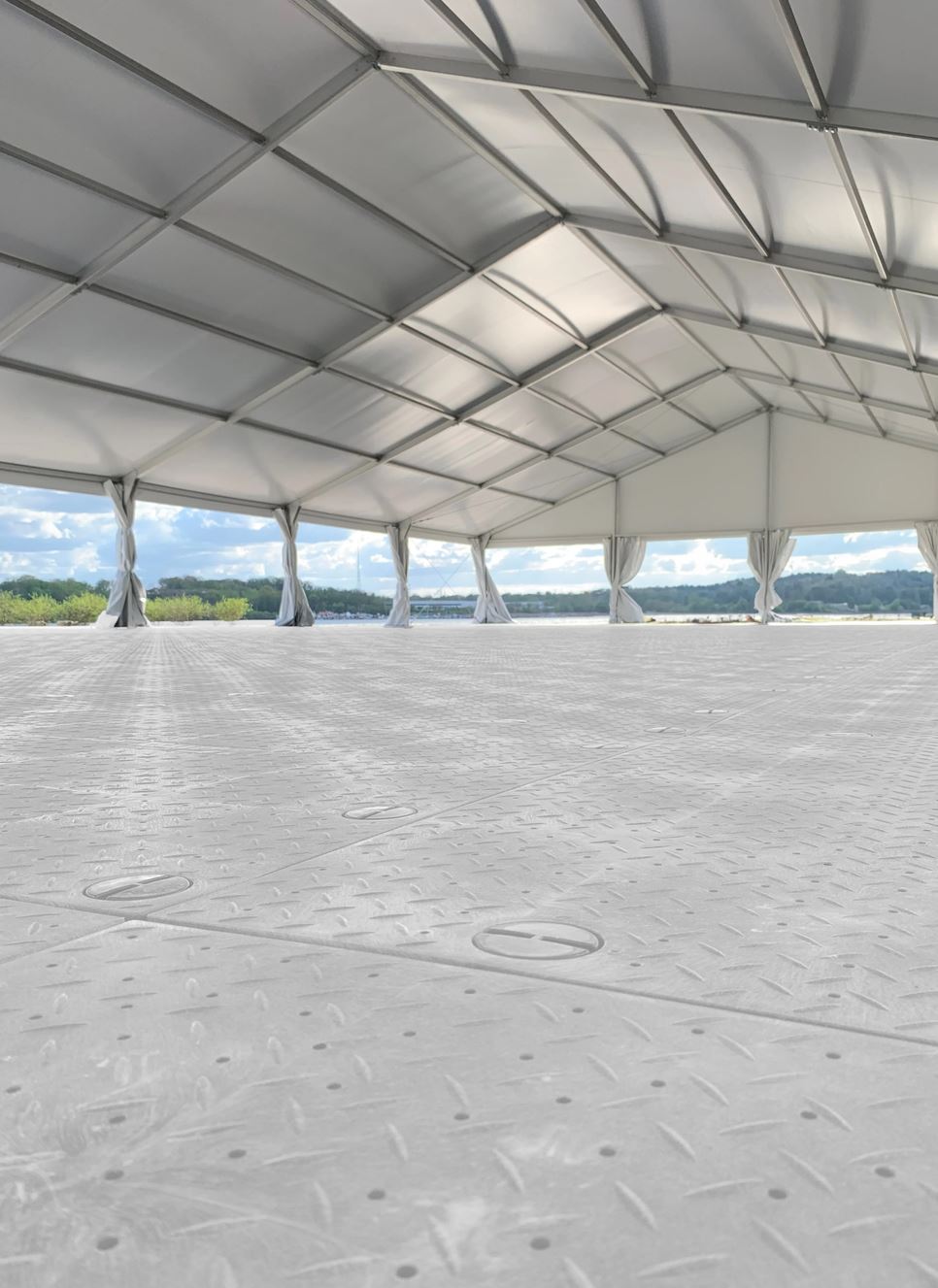

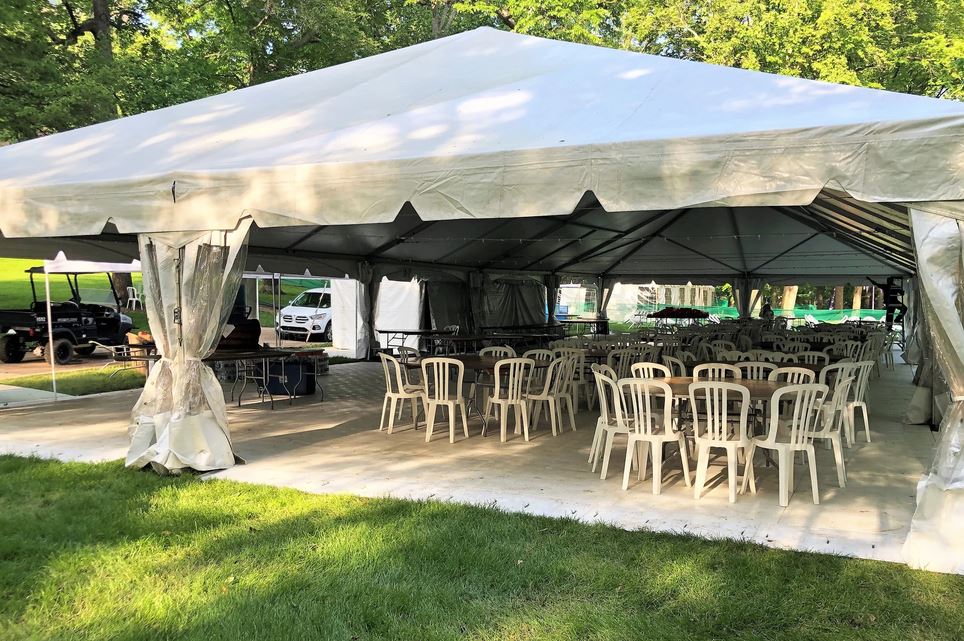

Tent & event floors
A smooth, trip-resistant floor for tents, hospitality, and vendor areas.

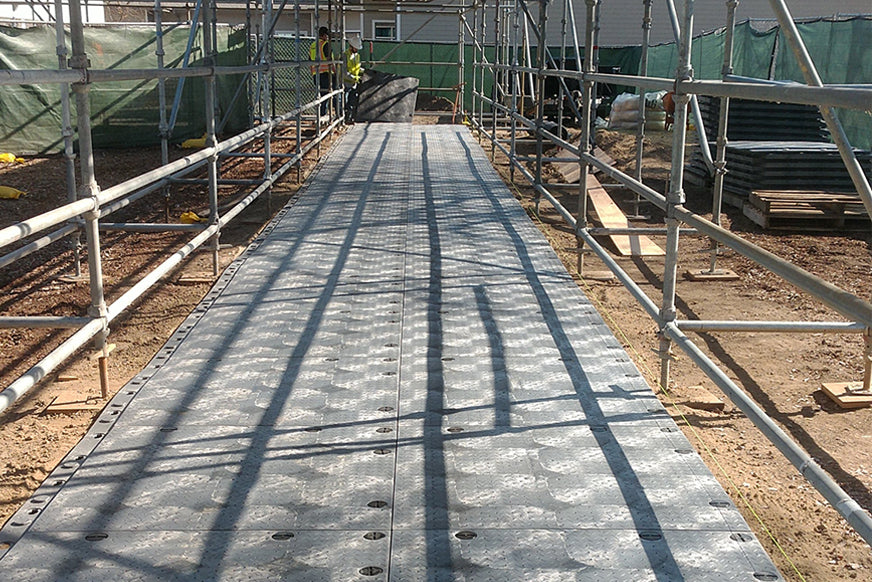

ADA & pedestrian walkways
LD panels and ramps make accessible routes over grass, sand, or uneven ground.

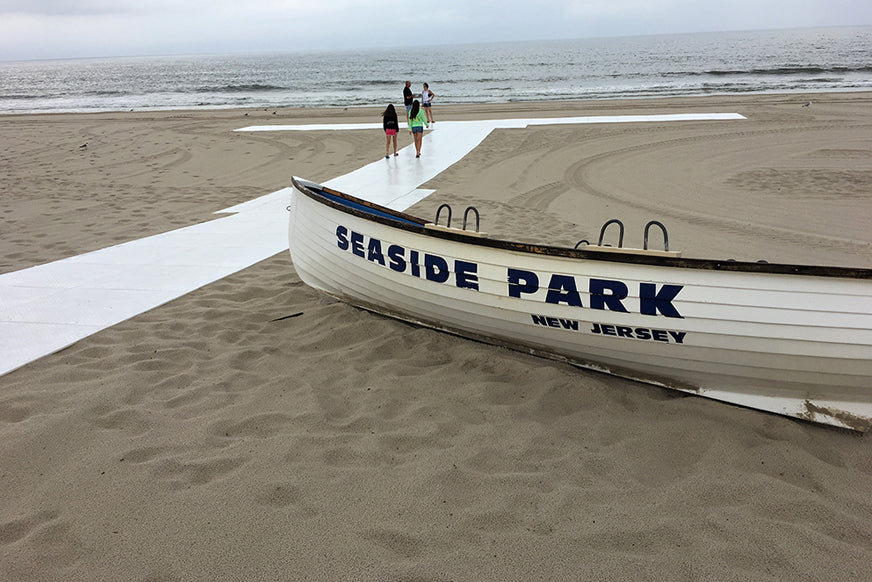

Beach & turf access
Temporary access across sand and soft ground without rutting or surface damage.
Case Study

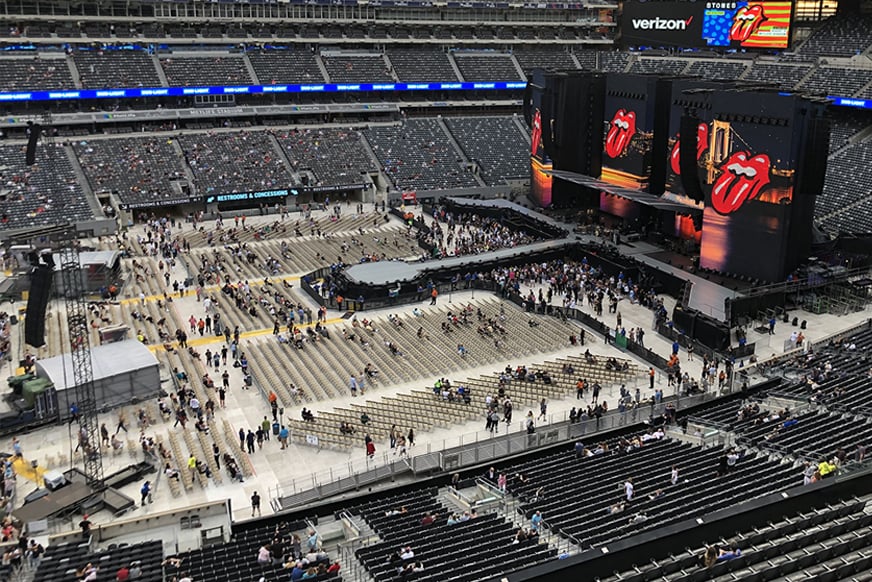

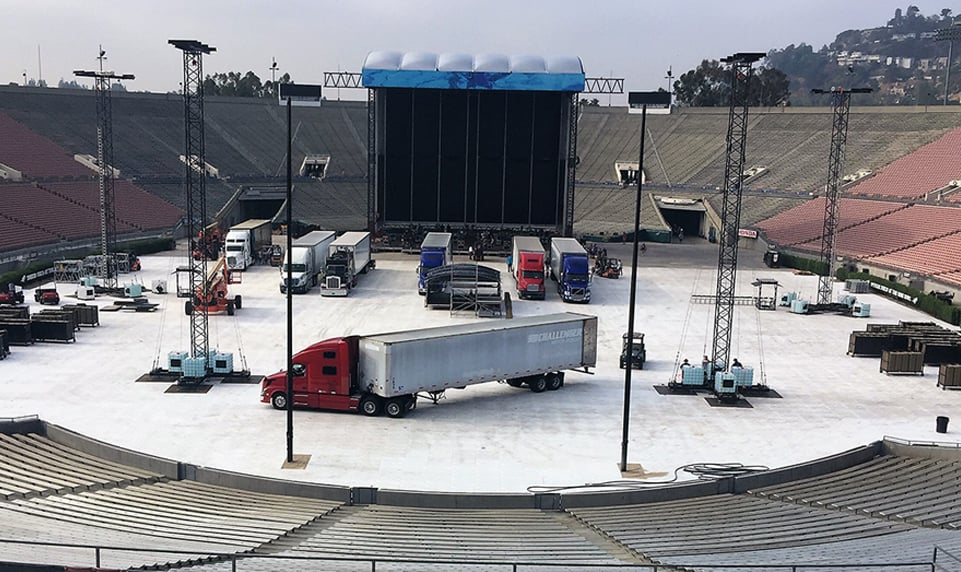

Stadium turf protection on a national tour
A large football stadium hosted a major concert tour. Crews staged pallets at the field tunnel, laid HD lanes for vehicle and equipment access, and filled spectator areas with LD walkways. Cam-locks and overlapping flanges delivered a smooth, trip-resistant surface across the whole footprint.
Outcome: rapid install and removal, protected turf, efficient traffic flow for staff and vendors, and minimized post-event remediation — keeping downtime between events to a minimum.

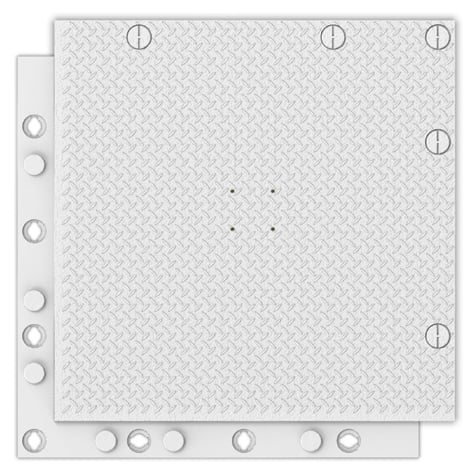

Spec Snapshot (HD)
Matrax HD specifications
Dimensions
4' × 4' × 1.5" per panel
Approx. weight
~50 lb per panel
Coverage
16 ft² per panel (less flange overlap)
Material
HDPE with UV inhibitors; reinforced ribbing; corrosion-resistant cam-locks
Connection
Vertical cam-locks with 4" overlapping flanges
Use
Drivable access lanes, staging platforms, high-traffic event flooring
Resources
Spec sheets & brochure
FAQ
Common questions
What's the difference between HD and LD?

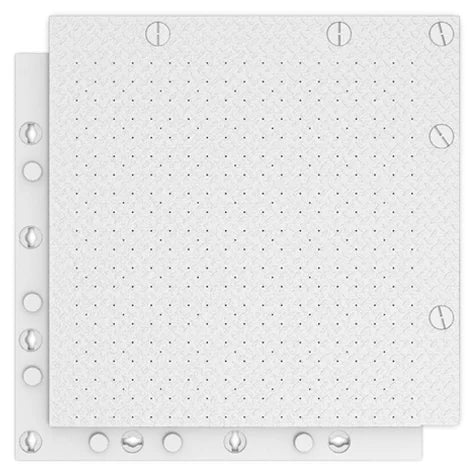

HD is the drivable, load-bearing panel for access lanes, platforms, and staging where vehicles and equipment travel. LD suits pedestrian zones and lighter loads like walkways and tent floors. Both share the 4' × 4' interlocking format, so you can mix them in one layout.
How many panels do I need?
Each panel covers 16 ft² (4' × 4'). Divide your area by 16 and allow a small reduction for flange overlap. The Event Panel Selector can help you scope a layout, or call us with your dimensions.
Can Matrax support vehicles?
HD panels are engineered for heavy rolling loads and drivable access, with actual capacity dependent on the subsurface beneath. A level, compacted base is key to load performance. For specific vehicle weights, check the HD spec sheet or contact us.
Do I need ramps or edging?

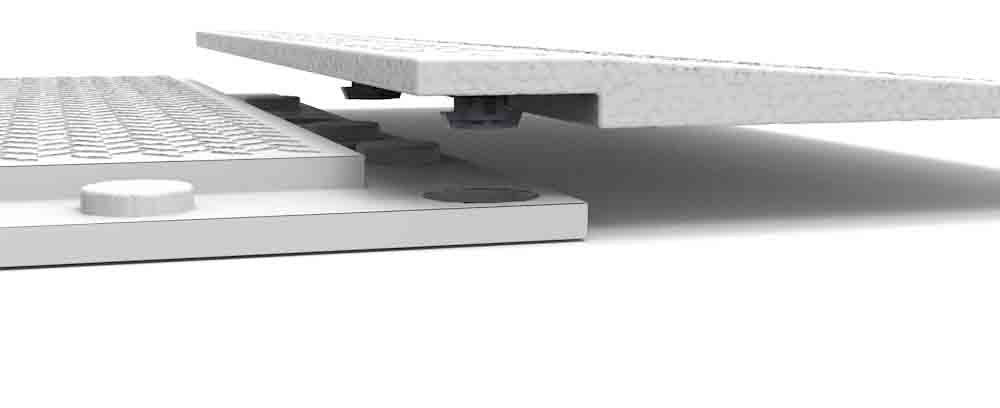

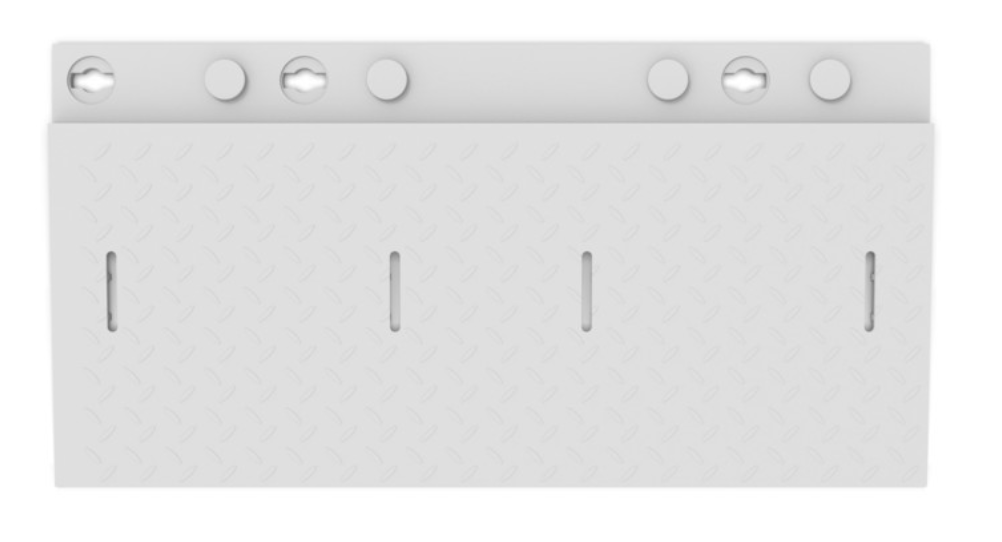

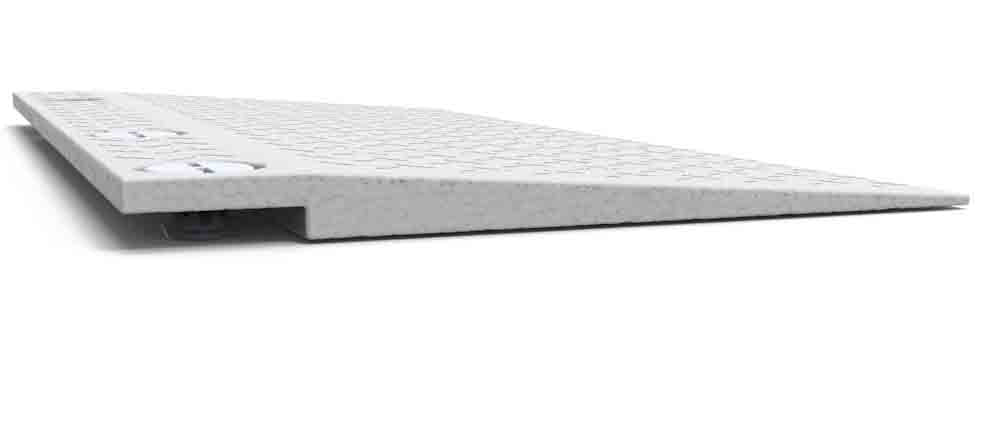

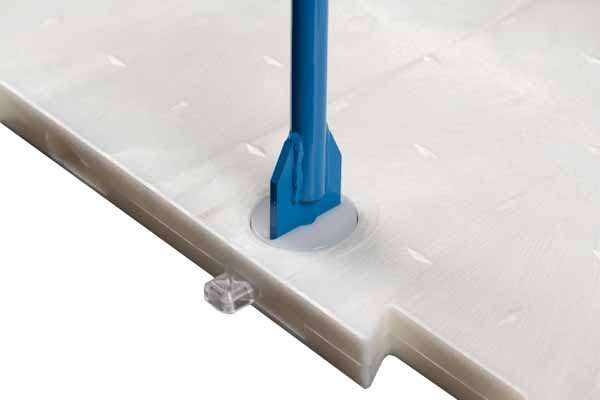

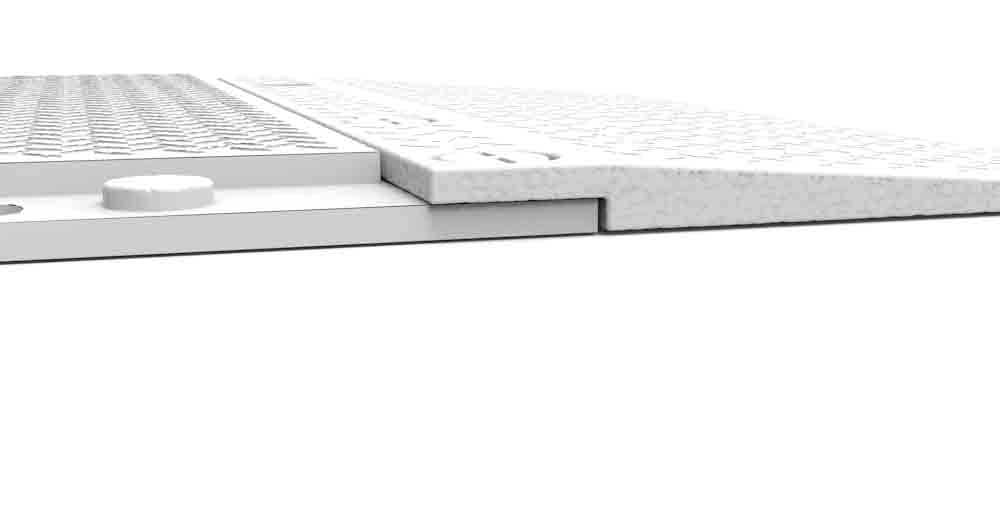

Edging ramps (male and female) give a clean, trip-resistant perimeter and support ADA access onto the floor. The Signature Locking Tool speeds up engaging and releasing the cam-locks during install and teardown.
How long does shipping take?
In-stock items ship out free on every order, typically within one business day when the order is placed before 2 PM Eastern. For large quantities or a firm delivery date, give us a call before ordering.
Planning an event or access project?
Use the Event Panel Selector to scope HD and LD panels, ramps, and tools for your layout — and every order ships free.
