Rig Mat - 7.5' L x 14' W

Rig Mat - 7.5' L x 14' W

Rig Mat - 7.5' L x 14' W

$4,022.98


FREE SHIPPING
SKU MD7.5P

Our Rig Mat, made by Signature Systems, is a very heavy-duty composite construction mat that provides a stable and non-shifting accessway or work platform for Rigs.  These mats (Megadeck) are made from HDPE and can easily be cleaned and re-used many times. They have a work lift of 10+ years in most environments.  The Rig Mat is 4" thick and weighs 1,025 lbs per mat. These mats are easy to install, minimize soil contamination, and create a stable platform for your rig.

For MegaDeck installations, the manufacturer recommends using 8 Megadeck pins per mat.

Minimum Order: 5 Mats

PRODUCT SPECS

Brand: MegaDeck

Dimensions: 7.5' L x 14' W x 4" H (105 SF)

Materials: HDPE with special impact modifiers and fillers to accommodate thermal
expansion, incorporate UV resistance, and add anti-static properties.

Weight: 1,092lbs

Weight Loading: 600 psi (86,400 lbs per sq ft)

         ✔   Free Shipping

        ✎  Need a written quote?
              Request Online

        $  Volume Pricing on Large Orders

       ❔ Questions? Call (800) 583-4891


PRODUCT HIGHLIGHTS

  • Superior Weight-Bearing Capacity: MegaDeck HD composite mats have a weight-bearing capacity of up to 600 psi / 86,400 lbs. per sq. ft.
  • Strong Support Structure: MegaDeck HD’s cross-ribbed interior distributes weight across the entire panel. These mats are not intended for bridging.
  • Maximum Shipping Efficiency: MegaDeck HD mats are properly sized to easily ship 40 mats in standard ISO containers and flatbed trailers.
  • Easy Cleaning: MegaDeck HD mats can be cleaned using a high-powered pressure washer. Most commercial cleaning agents will not damage the surface, but consideration should be given to environmental concerns.
  • Flammability Resistance: UL-94 HB Rating.
  • Non-Conductive: MegaDeck HD composite materials are inert, providing a non-conductive safe working platform.
  • Better than Wood: Unlike plywood, MegaDeck HD will not warp, rot, crack, or delaminate, and contains no unsafe chemicals.

SHIPPING

✔  All items ship for free

☏  Call: (800) 583-4891 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically ship within 1 business day if the order is placed before 2PM Eastern Time. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.



Spec Sheet HD+

Spec Sheet HD

Transmission & Dist. Industry

Construction Industry

Product Details

Product Brochure

FREQUENTLY ASKED QUESTIONS

Questions about our this product? Visit our FAQ section here.

All Signature Mats:

DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
Duradeck ground protection mats being driven on
Duradeck installation - white ground protection mats
Duradecks being installed by crew at jobsite
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats
DuraDeck - 4' x 8' Ground Protection Mats

DuraDeck - 4' x 8' Ground Protection Mats

$317.80
DuraDeck - DuraLink Single
DuraDeck - DuraLink Single

DuraDeck - DuraLink Single

$8.67
DuraDeck - Locking Plate - 4-Bolt
DuraDeck - Locking Plate - 4-Bolt

DuraDeck - Locking Plate - 4-Bolt

$19.41
DuraDeck - DuraLink Double
DuraDeck - DuraLink Double

DuraDeck - DuraLink Double

$11.22
DuraDeck - Locking Plate - 2-Bolt
DuraDeck - Locking Plate - 2-Bolt

DuraDeck - Locking Plate - 2-Bolt

$14.31
MegaDeck MDX Pin
MegaDeck MDX Pin
MegaDeck MDX Pin
MegaDeck MDX Pin

MegaDeck MDX Pin

$45.24
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W

MegaDeck HD Mat - Heavy Duty - 7.5' L x 14' W

$0.00
Signature Tool Kit
Signature Tool Kit

Signature Tool Kit

$892.80
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W
MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W

MegaDeck HD+ Mat - Heavy Duty - 7.5' L x 14' W

$4,022.98
MegaDeck S2 Pin
MegaDeck S2 Pin

MegaDeck S2 Pin

$43.18
SignaRoad Pin
SignaRoad Pin

SignaRoad Pin

$35.08
SignaRoad Mat - Medium Duty - 6.8' L x 10' W
SignaRoad Mat - Medium Duty - 6.8' L x 10' W
SignaRoad Mat - Medium Duty - 6.8' L x 10' W
SignaRoad Mat - Medium Duty - 6.8' L x 10' W
SignaRoad Mat - Medium Duty - 6.8' L x 10' W
SignaRoad Mat - Medium Duty - 6.8' L x 10' W

SignaRoad Mat - Medium Duty - 6.8' L x 10' W

$2,317.85

Answers For Platform And Access Matting For Oil & Gas Exploration

You can create a sturdy work platform, temporary roadways, and base station platforms for oil and gas exploration in remote areas as well as extraction sites located in severe environments and challenging conditions with Signature Mats.

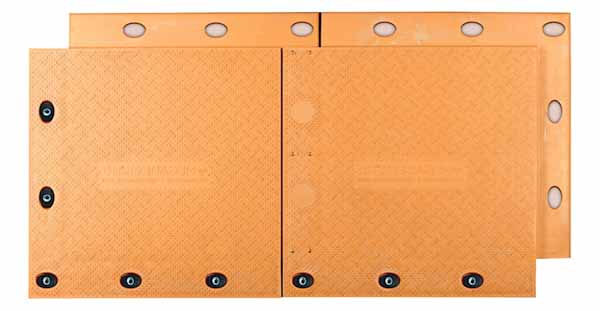

Overlapping Flanges

Overlapping flanges for MegaDeck® HD+ and SignaRoad® are engineered matting systems used for runoff rainwater while linking connections to prevent drifting and separation under heavy rolling loads. Oil field mats by Signature Systems will stabilize heavy drilling equipment and prevent damage to the surrounding

Rig Mats Being Layed Out

Megadeck in Marshy Area

Protection For Stronger & Safer Operations

MegaDeck® HD+ composite matting will create a strong, secure non-shifting work platform or a temporary access road that will minimize the risk of accidents while protecting your team and equipment.

Overlapping flanges for heavy-duty construction mats offer an interlocking design and will secure connection systems with one continuous surface that will stop drifting, separating, and falling under heavy rolling loads, or when going over soft ground.

Signature construction mats are somewhat resilient offering reliable support for heavy equipment and cranes in swampy and muddy conditions.

Have Minimal Environmental Impact Using Composite Matting

MegaDeck HD+ composite mats are non-toxic and will protect vegetation and surrounding areas. These mats will control the compaction of soil while decreasing the time spent and expensive time-consuming work.

Also, Signature construction mats eliminate cross-contamination between work sites and the possibility of transmitting parasites, chemicals, oils, mold, and insects. As these mats will not degrade or rot, you will have more time for installation with little environmental impact. At the end of each operation, these mats can be easily cleaned.

Rig Mat Platform

Megadeck Platform

A Continuous Composite Matting System

These mats can last a long time and are great answers for temporary roadways that will help to limit the destruction of forests. With the right care and maintenance, MegaDeck HD+ construction mats can be used for many projects for approximately 10 years. When they are no longer able to work properly, they can be recycled for other products.

Creative Designing & Secure Connections

MegaDeck HD+ composite mats with overlapping flanges will remain in place using MDX pins or S2 Lock™ technology. These mats are designed to allow them to be connected together in some environmental situations.

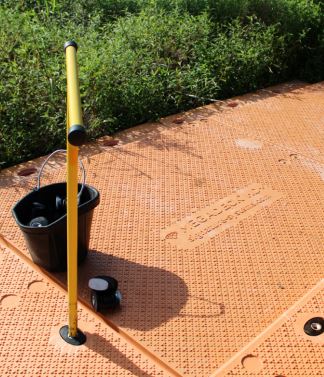

The MDX Pin Design

The system comes with an alloy pin and flexible plastic for the most extreme conditions for loads and impacts. The hole for the pin is formed into the mat to safely lock the mats showing whether it's locked or not

Megadeck Installation

Rig Mats Being Used in Flooded Area

Effective & Durable

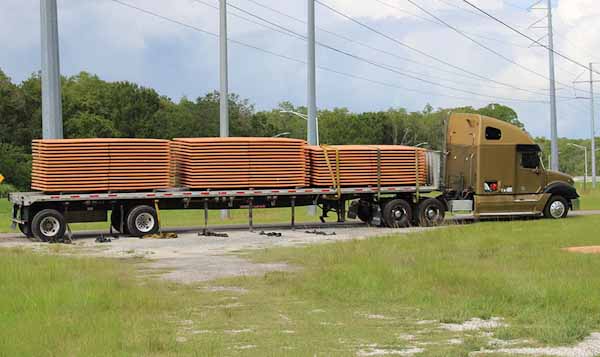

The MegaDeck HD+ construction mats are sized perfectly for easy shipping. 40 mats can be placed in standard ISO containers and flatbed trailers to save on shipping costs. These mats last for 10-plus years with minimal wear and tear for a great ROI or return on investment.

Applications For Megadeck HD +

You can get your extreme projects completed quickly, safely, and effectively.

MegaDeck HD+ composite construction mats are designed for a huge range of applications including:

Work platforms
Temporary roads and site access
Heavy haul roads
Environmental disaster relief
Swamp mats
Humanitarian efforts
Oil & Gas liner protection
Military flooring
