Fiberglass Well Cover
FREE SHIPPING
Free Shipping - Please submit a Quote Request for quantities larger than listed below.
| Quantity | Price Per Unit (Free Shipping) |
|---|---|
| 1 | $927.58 |
| 2+ | $881.20 |
| 3+ | $834.82 |
| 10+ | $788.44 |
Fiberglass Well Cover · Insulated · 4 Sizes
This fiberglass well cover pairs a layered fiberglass shell with a closed-cell urethane foam core to protect the wellhead and pressure tank from freeze damage, UV, and the everyday abuse of being out in the yard. The color is a 20-mil pigmented gelcoat molded into the shell, so it never needs painting. It comes in four sizes, from a single wellhead with a compact pump up to larger wellhead, tank, and pump groupings.
- Snap-tight — no fasteners for service
- Fits 4″–12″ casing diameters
- Made in the USA · free shipping
Overview
Built to Last. Built to Fit.
This fiberglass well cover is built around a layered fiberglass shell wrapped over a closed-cell urethane foam core, protecting the wellhead and pressure tank from freeze damage, UV, and the everyday abuse of being out in the yard. The 20-mil pigmented gelcoat is integral to the shell and resists the chalking and fading of field-painted units — the color you order is the color that lasts.
Choose from four sizes, from a single wellhead with a compact pump up to larger wellhead, tank, and pump groupings. Snap-tight construction means no fasteners are required for routine service — lift it off, work the well, set it back down. No anchoring hardware is needed for normal use; the shell's weight and shape hold it in place while staying easy to remove for service.
Why Contractors Specify It
Freeze Protection That Holds Up Outdoors
Freeze protection
A closed-cell urethane foam core (~R-7) shields the wellhead and pressure tank through cold snaps from the southern Carolinas to the upper Midwest.
Snap-tight, no fasteners
The cover lifts off and sets back on for routine service — no bolts or hardware to manage in the field.
Gelcoat that lasts
A 20-mil pigmented gelcoat resists UV and weather and never needs painting — stackable for distributor freight efficiency.
Specifications
Fiberglass Well Cover — Size Options
| Size | Dimensions (L × W × H) | Best for |
|---|---|---|
| Small Standard | 18″ L × 18″ W × 22″ H | Single wellhead, small pressure tank, compact pump |
| Small-Medium Standard | 33″ L × 22″ W × 24″ H | Wellhead plus a small tank or dual-line setup |
| Medium Standard | 40″ L × 35″ W × 38″ H | Full wellhead-and-tank install, mid-size pump grouping |
| Large Standard | 58″ L × 34″ W × 44″ H | Larger wellhead, tank, and pump groupings |
| Material | Layered fiberglass shell with urethane foam core |
| Finish | 20-mil pigmented gelcoat — no painting required |
| Insulation | Closed-cell urethane, approximately R-7 |
| Casing diameters | 4″ – 12″ standard (custom on request) |
| Colors | Forest Green or Almond |
| Construction | Snap-tight — no fasteners required for service |
| Origin | Made in the USA — Mount Ulla, North Carolina |
| Shipping | Free shipping to all 50 states |
Color Options
Two Gelcoat Finishes
Forest Green
Blends into lawns and landscaping

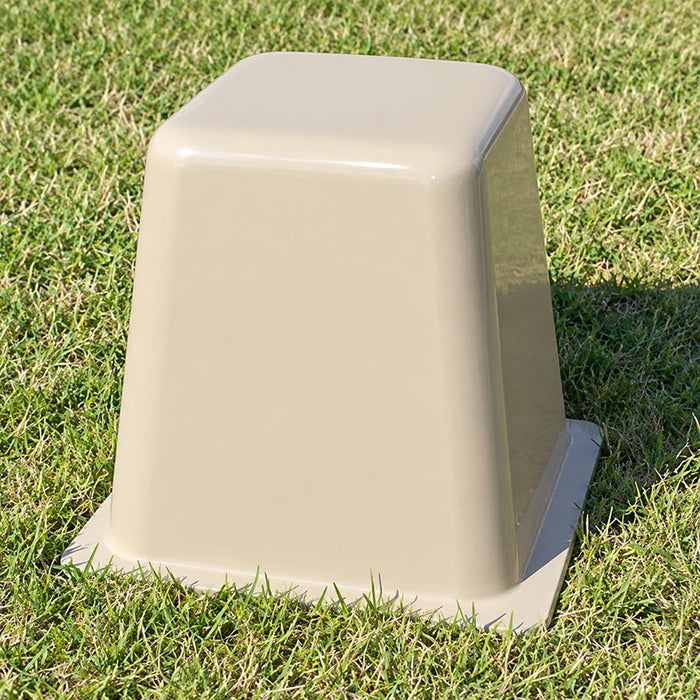

Almond
Neutral tone for gravel, beds, and hardscape

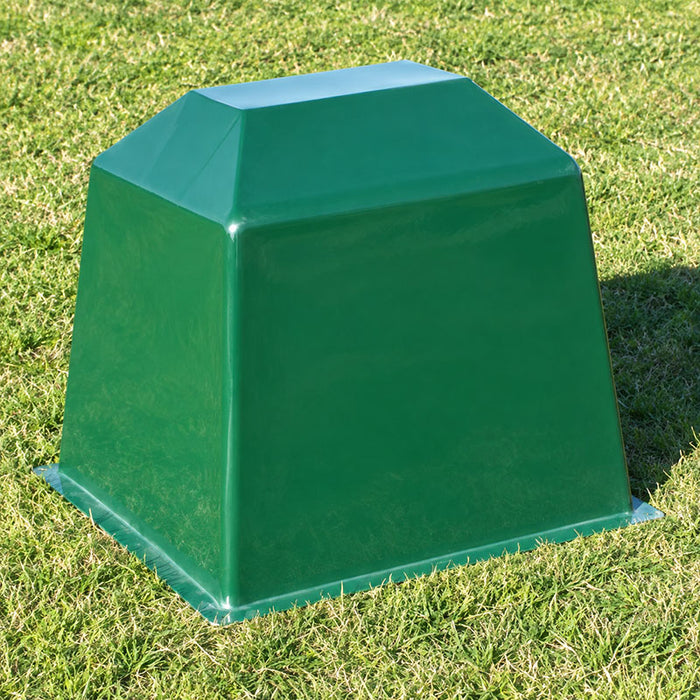

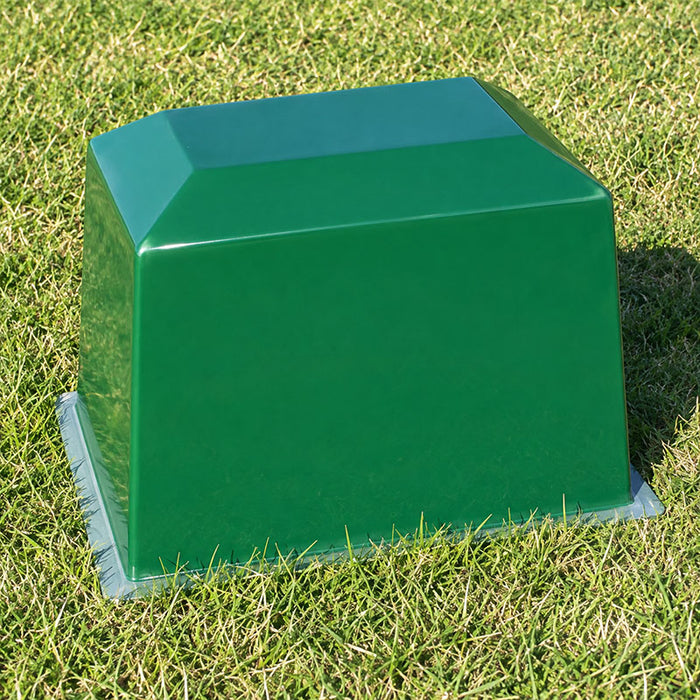

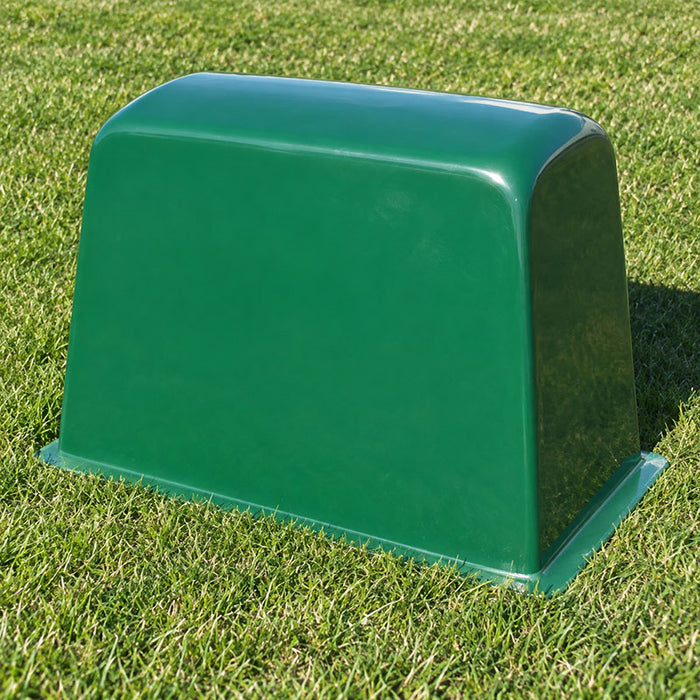

Gallery
