Driveway Protection Board: An Overview

A driveway protection board is a reusable, heavy-duty panel (often HDPE plastic) laid over a driveway or yard to spread loads from trucks, skid steers, dumpsters, and delivery equipment. In plain terms: it acts like a “wear layer” so tires and outriggers press on the board—not directly on your asphalt, concrete, or pavers.

What a Driveway Protection Board Is (and What It Prevents)

Driveway protection boards are designed to take the punishment that driveways weren’t built for—especially when loads concentrate at a small footprint (like tight turns, outrigger pads, or one side of a tandem axle). They help prevent:

Common Types of Driveway Damage (and Why They Happen)

1) Edge failure

Driveway edges are often the weakest spot—especially where the shoulder is soft or the slab is unsupported. Heavy wheels near the edge increase bending stress.

2) Heat-related asphalt deformation

On hot days, asphalt becomes more flexible. Slow-moving loads (like a dump truck creeping into place) can create ruts and wave patterns.

3) Point loads from stabilizers, jacks, and pallets

Outriggers, pallet jack wheels, and concentrated load points can exceed the surface’s local bearing capacity—even if the overall vehicle weight seems “normal.”

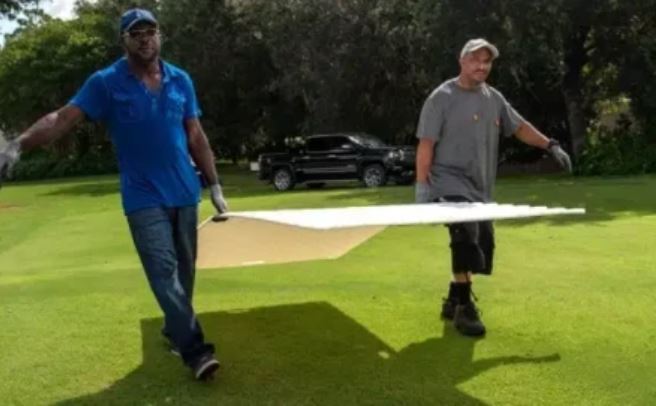

Photo 1: Delivery of driveway protection boards (jobsite access setup)

Practical takeaway: most damage is preventable with coverage planning

The biggest predictor of success isn’t just the board—it’s where you put it. Protect turns, transitions, and edges first. Then protect the straight run where vehicles will stop, pivot, or place a load.

Tip: if a driver must turn sharply, extend coverage beyond the turn so tires don’t “grab” an unprotected edge.

How Driveway Protection Boards Work: Load Distribution + Traction

Protection boards do two important things:

• Load distribution: they spread weight over a larger surface area, lowering pressure on any one spot.
• Traction & stability: textured/traction surfaces help equipment and workers maintain grip (especially when wet or muddy).

Planning the Layout: Coverage, Turns, and Weak Spots

Start with the “high-risk zones”

• Edges and shoulders: where concrete/asphalt is least supported.
• Tight turns: lateral tire forces increase scuffing and paver displacement risk.
• Stop-and-set locations: where trucks pause to dump or where equipment sits and idles.
• Grade breaks: driveway-to-street transitions and curb cuts.

Simple layout patterns that work

• Single lane: one board width for narrow equipment paths.
• Double lane: two boards wide for trucks or wider skid steers.
• Stagger seams: offset joints like brickwork to reduce “hinge” points.

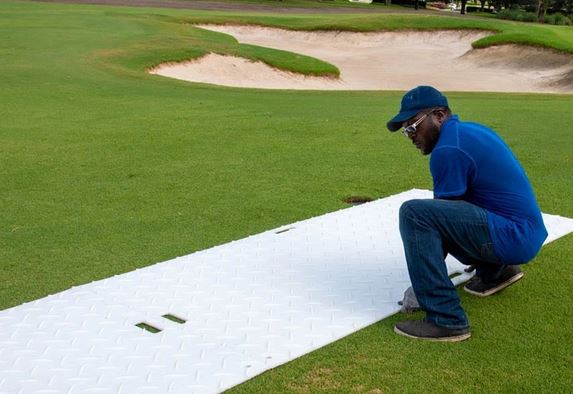

Photo 2: Traction surface supports safer footing for crews

Safety note: traction helps both machines and people

Protection boards aren’t only about avoiding driveway damage. They can also improve stability and walking safety in wet conditions by adding traction and a more predictable surface over soft areas.

Tip: if the site is muddy, extend boards beyond the driveway onto the approach so equipment doesn’t track mud onto finished surfaces.

Step-by-Step Installation

Step 1: Prep the surface

1. Remove loose gravel and debris (reduces scuffing under the boards).
2. Identify weak edges, soft shoulders, and any existing cracks/joints.
3. If protecting pavers, confirm there’s no loose bedding sand that could “pump” under turning loads.

Step 2: Place boards in the travel path

1. Start at the entry point and work toward the work zone.
2. Cover turns and stopping points with extra width (2 boards wide when possible).
3. Stagger seams so joints aren’t aligned across the full width.

Step 3: Protect point loads (when applicable)

If a truck has stabilizers or jacks, treat those as point loads. Use additional pads or increased board coverage under and around the stabilizer zone so the pressure is distributed and the surface isn’t crushed or spalled.

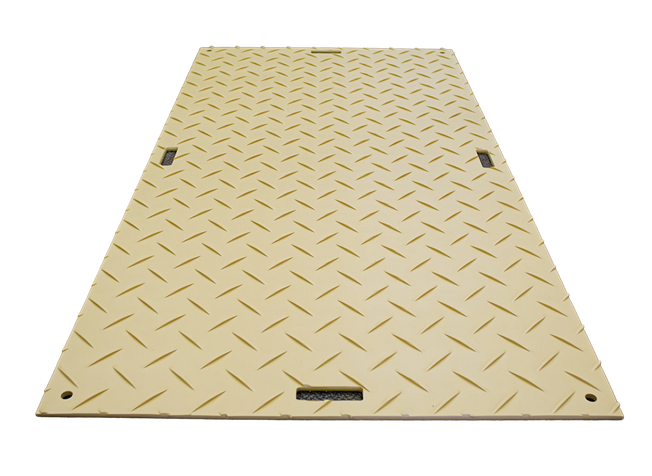

Photo 3: Driveway protection board (4' × 8' tan) in use

Step 4: Verify stability before traffic

Walk the route and check for rocking or gaps. If a board bridges over a low spot, it can flex under load and concentrate stress at edges. Reposition or add additional coverage to create a flatter, more continuous load path.

Pro tip: keep boards tight to the surface—most “mystery” scuffs come from grit trapped under a board that moved slightly during turns.

Common Mistakes That Still Cause Damage

Mistake #1: Protecting only the straight run (and skipping the turn)

Turning forces are often more damaging than straight driving. Add width at turns and around the work zone.

Mistake #2: Leaving weak edges unprotected

Edge failure is common when one tire rides near an unsupported shoulder. Extend boards past the driveway edge if necessary to create a stable shoulder.

Mistake #3: Ignoring point loads (pallet drops, outriggers, jack stands)

Concentrated loads can damage surfaces quickly. Use additional coverage or dedicated pads for these points.

Mistake #4: Not clearing debris first

Sand and grit can scratch decorative finishes and create scuff patterns. Quick surface prep reduces cosmetic damage.

Case Study: Heavy Delivery Route That Avoided Cracking and Edge Damage

What was installed

• A two-board-wide route at the entry and turning area to reduce lateral scuffing and edge stress.
• Staggered joints along the run to prevent a continuous “hinge” line.
• Extra board coverage at the stop-and-drop zone where loads were set down.

Why it worked

1. Load spread at the edge: boards created a more uniform contact area near slab borders.
2. Turn protection: added width reduced concentrated forces during steering.
3. Cleaner interface: debris removal minimized cosmetic scratches and scuffs.

Outcome

Deliveries and equipment access were completed without visible edge failure or new cracks, and the driveway finish stayed cleaner due to reduced direct contact between tires/outriggers and the surface.

FAQ: Driveway Protection Boards
