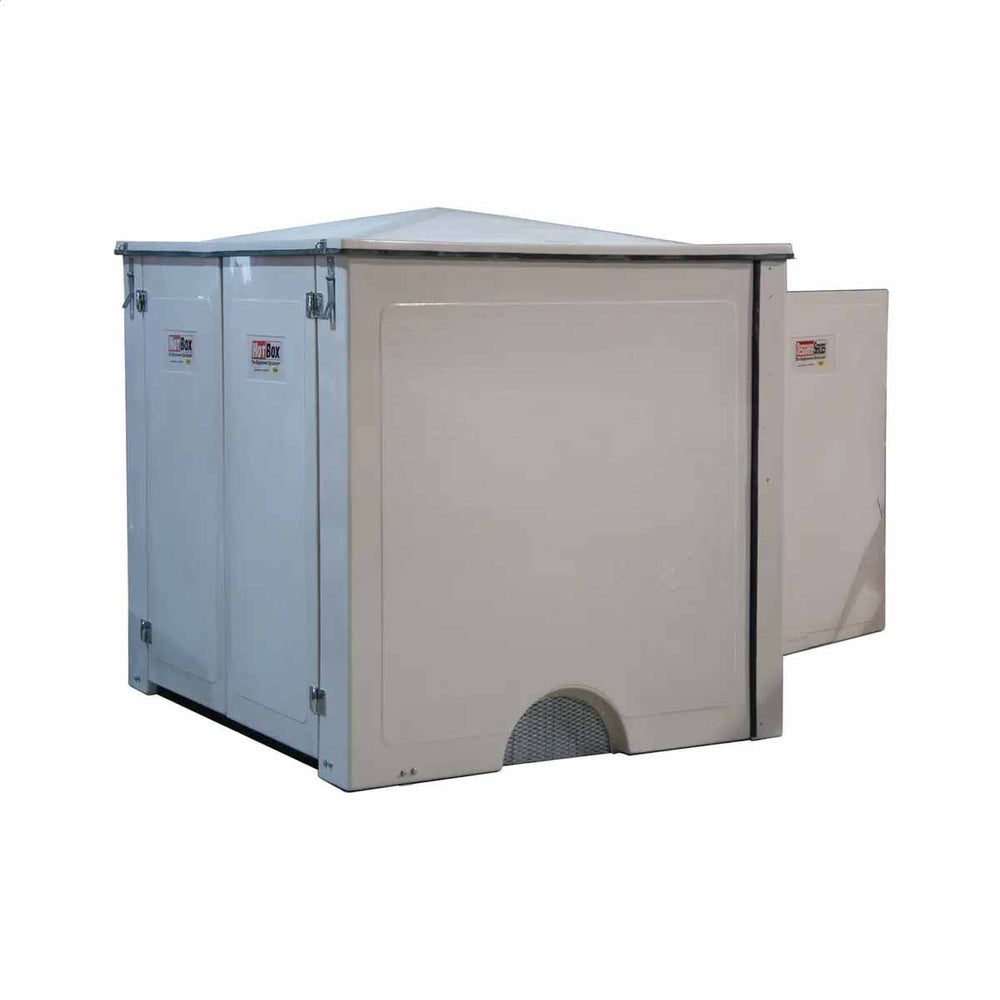

Hot Box - Designer Series Enclosure - LB10FEM - LM054062056

$17,738.43


FREE SHIPPING
SKU LB10FEM

Not sure which enclosure fits your assembly?

Backflow Enclosure Finder ↓

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

  • Quick Installation & Easy Access - Designer Series Enclosures require minimal installation time. They incorporate easily removable hinged front and rear doors, as well as top lid with gas shock supports. This design provides instant, unobstructed access for equipment testing and maintenance.
  • Corrosion & UV Resistant - Yacht quality fiberglass witha smooth, UV resistant gelcoat provides a corrosion proof finish that both looks good and stands up to the elements.
  • High Security - Lockable top lid and internal locks are on both the front and rear doors. Interior steel anchors secure the enclosures to the concrete slab.
  • Superior Freeze Protection - Insulation will not sag or delaminate from the walls due to the strong chemical bond between the fiberglass and the insulation. Wall-mounted heaters are installed above the discharge point to provide better long-term performance and safety.

- Size: 54W X 62L X 56H
- Weight: 485 LBS

🔍 Backflow Enclosure Size Finder

Enter the inside dimensions you need and we'll show you matching enclosures.

What inside dimensions do you need?

Enter the minimum interior length, width, and height required for your enclosure (in inches).

longest side needed
front-to-back needed
floor to top needed

Matching Enclosures

How to Size a Backflow Enclosure

Start by measuring the full installed assembly — including the backflow preventer, shutoff valves, test cocks, strainers, and any unions. That total measurement is your minimum inside clearance need. Then add at least 6 inches on each dimension so technicians can reach test cocks and perform annual testing without having to remove the enclosure.

All enclosures ship free.

Frequently Asked Questions

PRODUCT SPECS

  • Series: Designer Series (Fiberglass)
  • Manufacturer: Hubbell
  • ASSE Classification: Class II (Freeze Retardant)
  • Industry Standard:  ASSE 1060 Certified
  • Heated: No
  • Insulated: Yes
