ACO Drainage System - 39.37" Channel - K100

$156.00


FREE SHIPPING
SKU K100

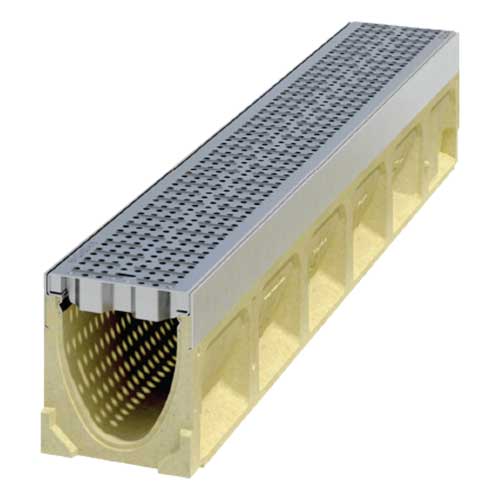

The ACO Drainage System K100 is a high-performance modular drain channel designed to handle surface water in both residential and commercial settings. With a 4-inch internal width and a 39.37-inch channel length, it delivers efficient flow control while blending seamlessly into surrounding hardscapes.

  • Edge rails available in galvanized steel or stainless steel
  • Continuous slope installation up to 130 feet for superior water management
  • Wide range of grates—mesh, slotted, perforated, and ductile iron—rated up to Load Class E

System Selection:

  • Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as catch basins and grates.

Note: ACO drainage products are subject to a $750 minimum order


Please Use the Order Form Below to Order ▼

Ordering Info:

Please scroll down for the complete K100 product listing with pricing.

Looking for a Written Quote?
Submit an ACO quote request >

Spec Sheets

Expand the menu below to view product specification sheets.

View Spec Sheets
Converted Document (Links Fixed)

Part Specification

3 Part Specification - KlassikDrain - General Duty Trench Drain



Trench Systems

KlassikDrain - K100 Galvanized steel edge rail channel system

KlassikDrain - KS100 Stainless steel edge rail channel system



DrainLok Grates

Type 410D-412D perforated galvanized steel grate (ada)

Type 411D-413D perforated galvanized steel grate (ada)

Type 420D-421D slotted galvanized steel grate

Type 425D-426D slotted galvanized steel grate

Type 430D-431D mesh stainless steel grate (ada)

Type 447D-448D Longitudinal stainless steel grate (ada)

Type 450D-452D slotted stainless steel grate

Type 451D-453D Perforated stainless steel grate (ada)

Type 455D-457D slotted stainless steel grate

Type 460D ductile iron slotted

Type 465D-466D perforated stainless steel grate (ada)

Type 476D Longitudinal ductile iron grate - ADA

Type 480D Wave ductile iron grate

Type 492D-497D-498D slotted plastic grate

Type 494D-495-496D Longitudinal plastic grate (ADA)

Type 438D-437D-galvanized-steel-longitudinal-grate (ada)

Type 405D-406D Mesh Galvanized Steel Grate Spec Sheet



QuickLok Grates

Type 405Q-406Q Mesh galvanized steel grate.pdf

Type 410Q-412Q perforated galvanized steel grate.pdf

Type 411Q-413Q perforated galvanized steel grate.pdf

Type 420Q-421Q slotted galvanized steel grate.pdf

Type 425Q-426Q slotted galvanized steel grate.pdf

Type 430Q-431Q mesh stainless steel grate.pdf

Type 435Q-436Q slotted galvanized steel grate.pdf

Type 447Q-448Q Longitudinal stainless steel grate - ADA.pdf

Type 450Q-452Q slotted stainless steel grate.pdf

Type 451Q-453Q perforated stainless steel grate.pdf

Type 455Q-457Q slotted stainless steel grate.pdf

Type 461Q ductile iron slotted.pdf

Type 465Q-466Q perforated stainless steel grate.pdf

Type 478Q Longitudinal ductile iron grate - ADA.pdf

Type 479Q Mosaic ductile iron grate.pdf

Type 480Q Wave ductile iron grate.pdf

Type 481Q Deco ductile iron grate.pdf

Type 490Q-493Q slotted stainless steel grate.pdf

Type 492Q slotted resin composite grate.pdf

Type 494Q Longitudinal black plastic grate (ADA).pdf

Type 495Q Longitudinal gray plastic grate (ADA).pdf



Brickslot Grates

Brickslot - 100 Type 441-442 Galvanized Steel Spec Sheet

Brickslot - 100 Type 443-444 Stainless Steel Spec Sheet

Brickslot - 100 Type 470-471 Galvanized Steel Heel Resistant Spec Sheet

Brickslot - 100 Type 472-473 Stainless Steel Heel Resistant Spec Sheet

Brickslot - 100 Type 482 Galvanized Steel Access Unit Spec Sheet

Brickslot - 100 Type 483 Galvanized Steel Heel Resistant Access Unit Spec Sheet

Brickslot - 100 Type 484 Stainless Steel Access Unit Spec Sheet

Brickslot - 100 Type 485 Stainless Steel Heel Resistant Access Unit Spec Sheet



Catch Basins

K1-621G Catch Basin.pdf

K1-621S Catch Basin.pdf

K1-631G Catch Basin.pdf

K1-631S Catch Basin.pdf

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 583-4891 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
ACO-Transit-Map.gif__PID:5127836e-f287-4ab5-9821-e15938a6e154

Trench Drain System & Accessories (Free Shipping)

Please see the below product listing. Please note, accessories (grates, basins, caps, etc.) must be purchased with a trench drain system including channels and cannot ship alone.

ACO Drainage System – 39.37″ Channel – K100: Complete Guide for Performance & Design

The ACO Drainage System – 39.37″ Channel – K100 is a modular trench drain solution built to manage runoff effectively while keeping surfaces safe and attractive. With a 4-inch internal width and 1-meter (39.37″) channel length, it balances durability, flexibility, and easy installation for commercial and residential applications alike.

4″ internal width 39.37″ channel length Continuous slope up to 130 ft DrainLok® / QuickLok® boltless Grates up to Load Class E Galv. or stainless edge rails
Workers installing drainage grates for ACO K100 system
Installing K100 Drainage Grates

Understanding the K100 System

In plain terms: The K100 is a linear drainage system made of 39.37″ channels that connect seamlessly to form long runs. This design efficiently captures surface runoff along driveways, sidewalks, plazas, and other hardscapes where water tends to spread out.

Ideal uses:

  • Residential driveways and patios: Prevents pooling around entries and garages.
  • Parking lots & commercial walkways: Captures widespread runoff where point drains fail.
  • Public parks & plazas: Maintains safety and appearance with discreet water control.

Key Features Explained

  • DrainLok® & QuickLok®: Grates lock in place without bolts for tool-free removal.
  • Anti-shunt lugs: Prevent sideways grate movement under traffic loads.
  • Numbered channels: Ensure slope consistency and correct installation order.
  • Multiple grate styles: Stainless, slotted, mesh, or ductile iron—rated up to Class E.
Large commercial project using ACO trench drainage system
Large-Scale Drainage Project

Choosing Grates & Load Ratings

Load ratings simplified: Grates are tested for how much weight they can withstand. Class A–C is for pedestrians & light traffic, Class D handles occasional trucks, and Class E supports heavy-duty vehicles.

Style vs. function: Stainless or powder-coated grates provide a polished look for public spaces, while ductile iron grates offer rugged strength in industrial zones. Select the grate pattern based on traffic, debris load, and appearance needs.

Tip: For areas with snow plows or heavy debris, use wider slotted or ductile iron grates and take advantage of boltless locking for easy seasonal cleanouts.

Edge Rail Options

  • Galvanized steel: Affordable, reliable corrosion resistance for general outdoor use.
  • Stainless steel: Premium option for coastal zones, food prep areas, or architectural finishes.
Curved drainage installation in a public park using ACO K100
Curved Drainage in Park Setting

Planning & Installing the K100

  1. Map surface water: Identify ponding spots and runoff direction.
  2. Select discharge: End outlet, bottom outlet, or catch basin depending on site layout.
  3. Calculate channels: Each is 39.37″—add extra for trimming and connections.
  4. Set slope: Continuous slope up to 130 ft; target 0.5–1% for self-cleaning flow.
  5. Match load class: Choose the correct grate strength for expected traffic.
  6. Install accessories: End caps, transitions, and outlets for alignment and sealing.

Installation Highlights

  • Excavate trench and prepare bedding.
  • Set channels in order by number; secure with haunching concrete.
  • Finish surface grade and protect edges during curing.
  • Place grates using DrainLok® or QuickLok®—no tools needed.

Case Study: Municipal Garage Ramp with K100

Problem: A municipal garage ramp experienced frequent pooling at the base, leading to icy conditions in winter.

Solution

  • Installed a 120-ft run of K100 channels sloped to a central basin.
  • Used ductile iron grates (Class E) to handle light truck traffic.
  • Adopted QuickLok® grates for monthly cleanouts without tools.

Results

  • Water redirected before reaching pedestrian areas.
  • Maintenance reduced thanks to tool-free grate removal.
  • Improved safety with no slip complaints after installation.

K100 Quick Specs

  • Channel length: 39.37″ (1 meter)
  • Internal width: 4″
  • Edge rails: Galvanized or stainless steel
  • Continuous slope: Up to 130 ft
  • Grates: Mesh, slotted, perforated, ductile iron (Load Class E)
  • Locking system: DrainLok® / QuickLok® boltless

FAQs

Is the K100 suitable for residential driveways?

Yes, use a Class B–C grate and provide slope to ensure flow toward an outlet.

How often should maintenance be performed?

Inspect seasonally and after storms. Boltless grates make removal simple and fast.

When is stainless steel preferred?

Use stainless where corrosion resistance and aesthetics are priorities, such as coastal or high-visibility projects.
