ACO Brickslot 100

ACO Brickslot 100

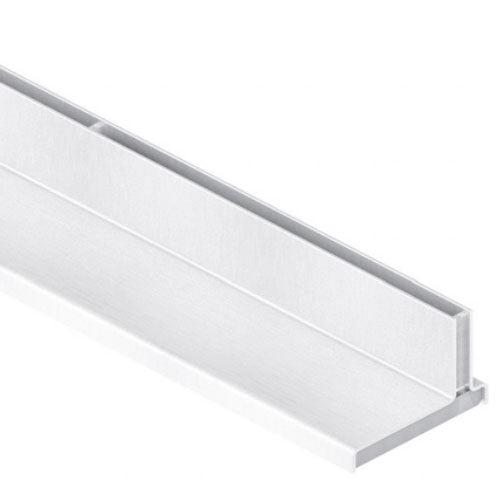

ACO Slot Drain - Brickslot - 39.37" Channel

$219.00


FREE SHIPPING
SKU BrickSlot

ACO Slot Drain – BrickSlot is a slimline drainage solution engineered to blend seamlessly into brick or stone paving. Designed for compatibility with the ACO KlassikDrain K100 channel (4″ internal width), this system provides efficient surface water management while maintaining a clean, discreet appearance.

Key Features:

  • Slimline design: Narrow 0.47″ (12 mm) slot aligns perfectly with paving joints for an unobtrusive, seamless finish.
  • Compatible system: Designed to integrate with the ACO KlassikDrain K100 channel for reliable performance.
  • Aesthetic appeal: Ideal for pedestrian plazas, courtyards, and premium landscaping projects where design continuity is important.
  • Durability: Works with either galvanized or stainless steel edge channels, providing long-term reliability even in demanding environments.
  • Safety-focused: Heel-resistant offset slot improves pedestrian safety in high-traffic areas.
  • Low maintenance: Integrated access units allow for straightforward inspection and cleaning.

Applications:

  • Pedestrian plazas
  • Courtyards and walkways
  • High-end landscaping projects
  • Commercial outdoor spaces requiring both function and aesthetics

Note: This product must be ordered with an ACO Trench Drain System and cannot ship alone.

Note: ACO drainage products are subject to a $750 minimum order


Please Use the Order Form Below to Order ▼

View Our Full Selection of ACO Trench Drain Products  →

Ordering Info:

Please scroll down for the complete Brickslot product listing with pricing. Not sure of the exact parts needed? Please submit an ACO Trench Drain Quote Request >

Spec Sheets

Visit acowm.com to download specification sheets and other technical information.

Shipping Time

  • All items ship for free (standard ground, see map)
  • Call: (800) 583-4891 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
ACO-Transit-Map.gif__PID:5127836e-f287-4ab5-9821-e15938a6e154

Brickslot System & Accessories (Free Shipping)

Please see the below product listing. Brickslot is designed to be used with either the K100/KS100 or K200/KS200 trench drain systems. Please note, this product (Brickslot) as well (grates, basins, caps, etc.) must be purchased with a trench drain system including channels and cannot ship alone.

Heel-Resistant Discreet Aesthetics

ACO Slot Drain – BrickSlot: The Discreet, Design-Forward Guide (with Case Study)

ACO Slot Drain – BrickSlot is a slimline surface drainage solution that virtually disappears into brick or stone paving. It pairs with the ACO KlassikDrain K100 (4″ internal width) to deliver efficient water capture while preserving clean, uninterrupted hardscape lines.

Plain-English: you get a narrow slot—just 0.47″ (12 mm)—that follows your paving joints, moves water away quickly, and keeps the look high-end and uncluttered.

Where it shines: pedestrian plazas, courtyards, commercial walkways, and premium landscapes that demand both performance and invisible design.
ACO BrickSlot integrated along paving joint in modern plaza
BrickSlot disappears into the paving joint for a seamless look

How BrickSlot Works (and Why Designers Love It)

  • Slimline inlet: The 0.47″ (12 mm) slot aligns with paving joints, creating a discreet, continuous intake.
  • Under-the-surface channel: The slot feeds into the K100 polymer concrete channel (4″ internal width) for reliable conveyance.
  • Heel-resistant & pedestrian-safe: The offset slot geometry helps prevent heel catch and improves safety in busy spaces.
  • Durable edge options: Choose galvanized or stainless steel edge channels to match corrosion and appearance needs.
  • Easy upkeep: Integrated access units simplify inspection and cleaning without disturbing surrounding pavers.

Core Advantages

  • Unobtrusive aesthetics: Keeps the visual focus on the landscape and hardscape.
  • Performance without bulk: Captures sheet flow effectively while using minimal surface footprint.
  • Modular fit: Works within the proven ACO KlassikDrain ecosystem for flexible layouts.
BrickSlot slot drain in a commercial shopping corridor
Commercial corridor using BrickSlot for discreet runoff control

Key Features

  • Slimline design: Narrow 0.47″ (12 mm) slot aligns with paving joints for an unobtrusive finish.
  • Compatible system: Integrates with ACO KlassikDrain K100 (4″ internal width) for dependable hydraulics.
  • Aesthetic appeal: Ideal for plazas, courtyards, and premium landscapes where continuity matters.
  • Durability: Use galvanized or stainless edge channels to suit environment and maintenance goals.
  • Safety-focused: Heel-resistant offset slot enhances pedestrian safety in high-traffic areas.
  • Low maintenance: Integrated access units streamline inspection and cleaning.

Typical Applications

  • Pedestrian plazas and courtyards
  • Retail promenades and mixed-use corridors
  • High-end commercial landscaping and hotel entries
  • Campus quads, cultural venues, and streetscapes

Design & Spec Checklist

  • Hydraulics: Contributing area, slope, rainfall intensity, and outlet locations.
  • Edge selection: Galvanized vs. stainless—balance appearance, corrosion resistance, and budget.
  • Joint planning: Align the slot with paving patterns for seamless visual integration.
  • Access strategy: Place access units at logical intervals and grade transitions.
  • ADA/heel safety: Confirm offset geometry and jointing meet local requirements.
BrickSlot guiding water through landscaped courtyard
Subtle slot line preserving the landscape’s clean geometry

Installation & Maintenance (Step-by-Step)

  1. Layout: Map the slot path along paving joints; identify outlet and access unit locations.
  2. Excavate & base: Prepare trench per K100 requirements; compact subbase and bedding.
  3. Set channels: Install K100 channels to line/grade; ensure correct alignment for slot components.
  4. Install BrickSlot: Fit slot upstands/covers; verify offset slot orientation for heel resistance.
  5. Access units: Place at planned intervals and junctions to facilitate cleaning.
  6. Backfill & paving: Concrete haunch per spec; lay pavers flush with slot edges.
  7. Commission: Water test, check flow to outlets, and finalize jointing/seals.

Routine care: Remove debris via access units, rinse channels, and verify free discharge at outlets. The narrow slot minimizes visual impact while keeping maintenance simple.

Pro Tip: In areas with fine sediments or heavy landscaping, schedule seasonal cleanouts to maintain peak inflow capacity.

Case Study: Boutique Retail Plaza Uses BrickSlot to Disappear Drainage

Location: Urban retail plaza, mixed stone-and-brick hardscape • Goal: Solve ponding at storefront thresholds without introducing visible grates.

Challenges

  • Frequent sheet flow across storefronts after storms created slip hazards.
  • Architects required a seamless look with continuous paving joints—no bulky grates.
  • Limited space for maintenance equipment and access.

Solution

  • Installed ACO Slot Drain – BrickSlot aligned to paving joints along a 150-ft run feeding the K100 channel.
  • Stainless steel edges specified for corrosion resistance and long-term finish quality.
  • Access units positioned at grade breaks and near downspouts for streamlined cleaning.

Outcomes

  • Visual continuity preserved: Slot line is barely visible; architectural intent maintained.
  • Safety improved: Reduced standing water at entries; fewer slip reports from tenants.
  • Maintenance efficiency: Staff complete inspections via access points in minutes.

Frequently Asked Questions

When should I choose BrickSlot over a traditional grate?

Use BrickSlot when design continuity and minimal visual impact are top priorities—e.g., plazas, promenades, and premium entries—while still needing reliable drainage performance.

Can BrickSlot handle heavy pedestrian traffic?

Yes. The heel-resistant offset slot design supports pedestrian comfort and safety in busy areas. Select channel edges (galvanized or stainless) to match expected wear and environment.

How is maintenance performed with such a narrow slot?

Access units allow crews to remove debris and rinse channels without pulling up pavers. Plan access spacing according to site debris loads and slope.

Plan Your BrickSlot Drainage

Share your paving plan and site photos—we’ll help align the slot with joints, size channels, and place access points for long-term performance.

Request a Quote
